WIDENER TRAILERS
Viking Widener Trailers are engineered for Australian transport operators moving heavy machinery, plant and oversized equipment where strength, stability and flexibility matter. Our hydraulic widener semi trailers offer multiple configurations, widening capabilities and equipment options to suit demanding heavy-haulage applications. Built with heavy-duty construction, quality components and backed by a 12-month Australia-wide warranty, Viking is committed to supplying some of the best Widener Trailers in Australia for serious machinery and equipment transport.
WIDENER 17.5
VIEW SPECIFICATIONS +

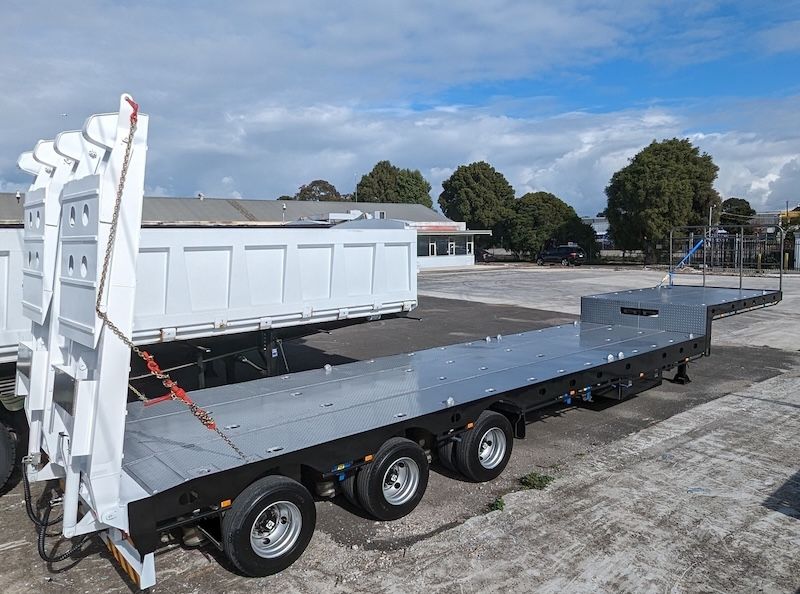

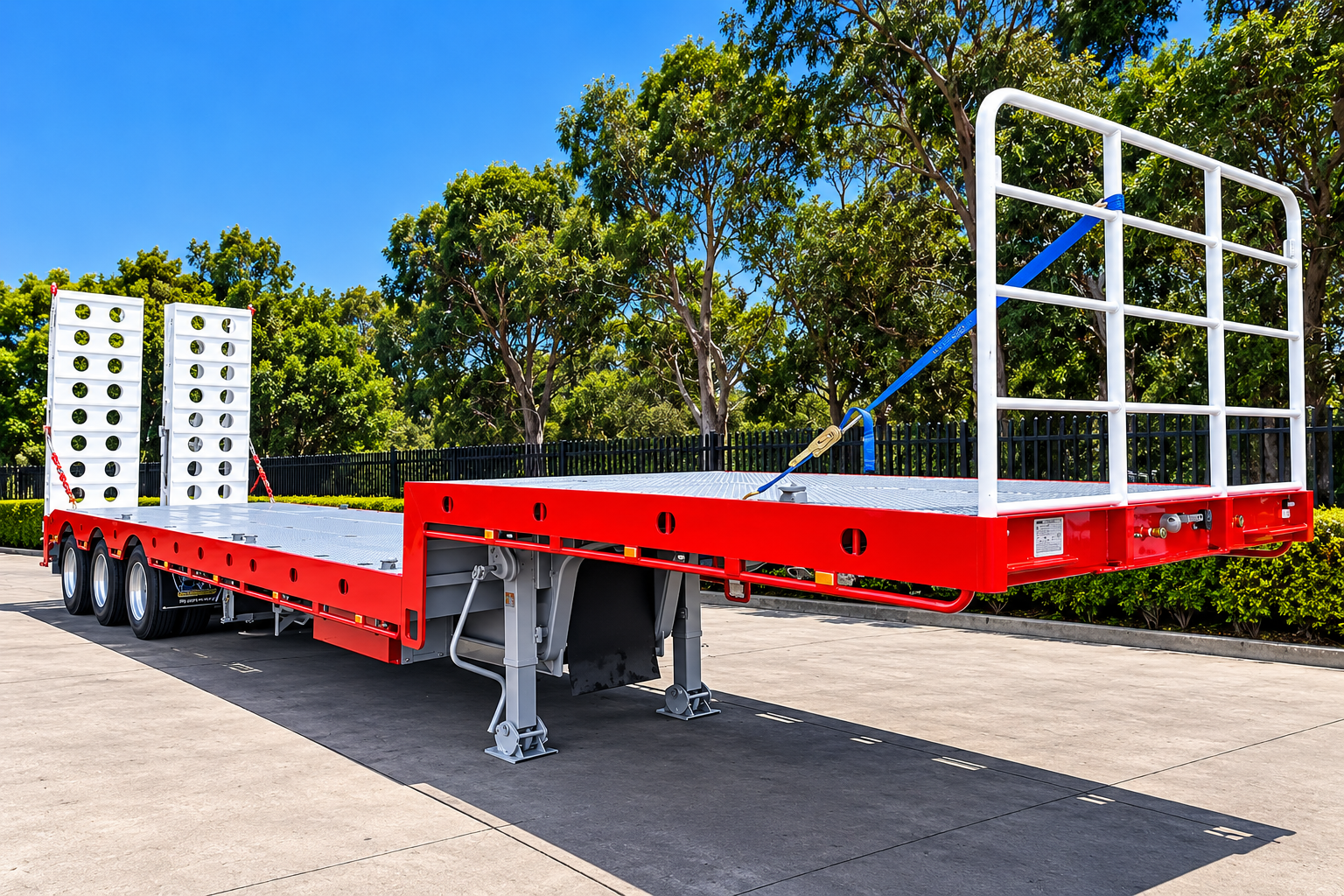

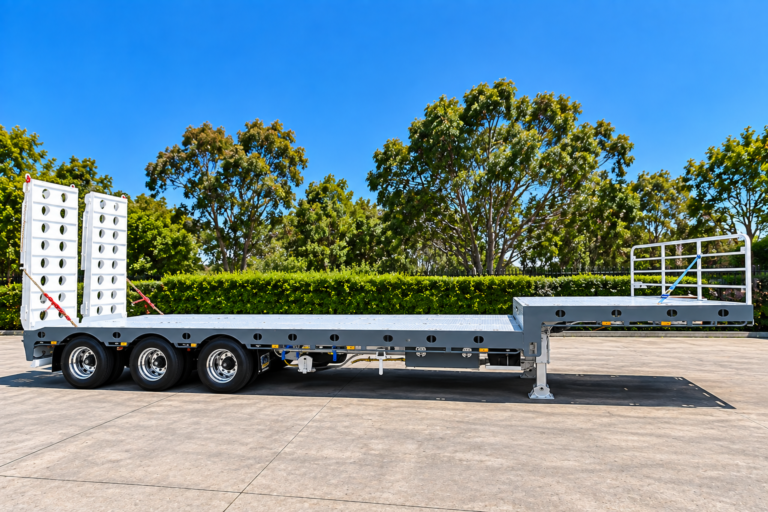

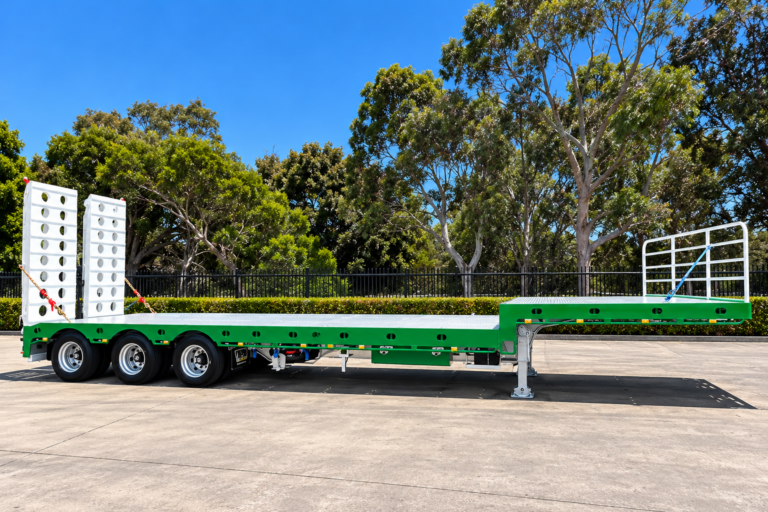

• Trailer: 45ft Drop Deck Widener Machinery & Freight Semi-Trailer
• Rating: 45 ATM, 25-Ton rated at 3.5m wide
• Length: 13,700mm (45ft)
• Width: 2,495mm, widens to 3,500mm
• Deck Height: 930mm
• Axles: 17.5 K-Hitch 11.5-ton tri-axle

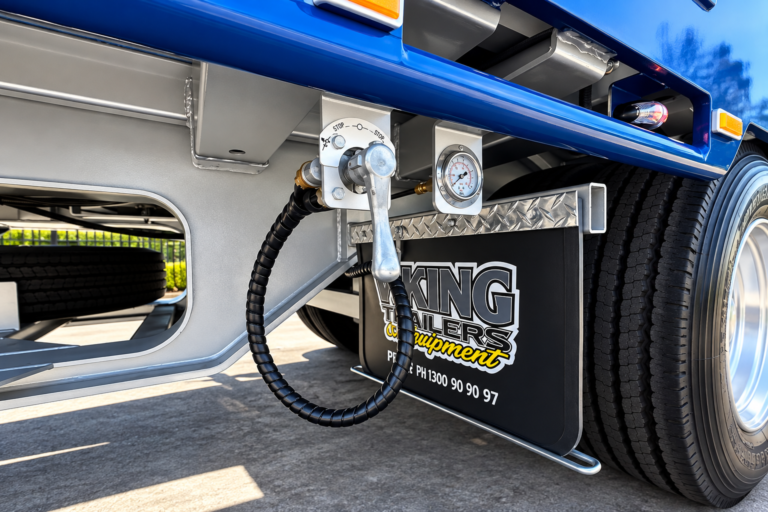

• Suspension: K-Hitch airbag suspension with raise/lower valve
• Braking: EBS braking system
• Floor: 5mm high-tensile checker-plate steel
• Structure: 8mm coaming rails & triple-reinforced gooseneck
• Coupling: Ringfeeder bracket

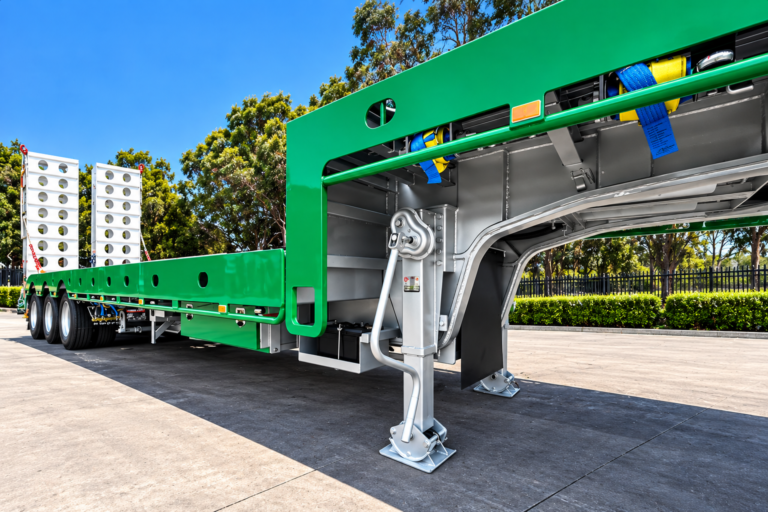

• Landing Gear: JOST 2-speed landing legs
• Kingpin: 2-position bolt-in kingpin

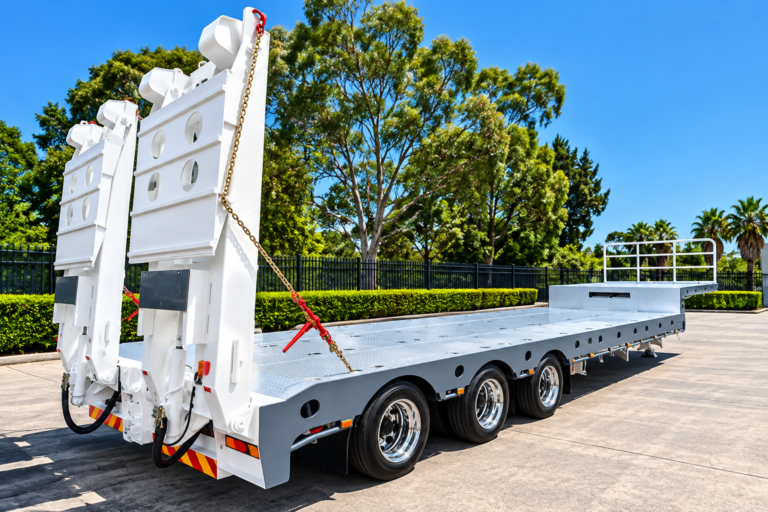

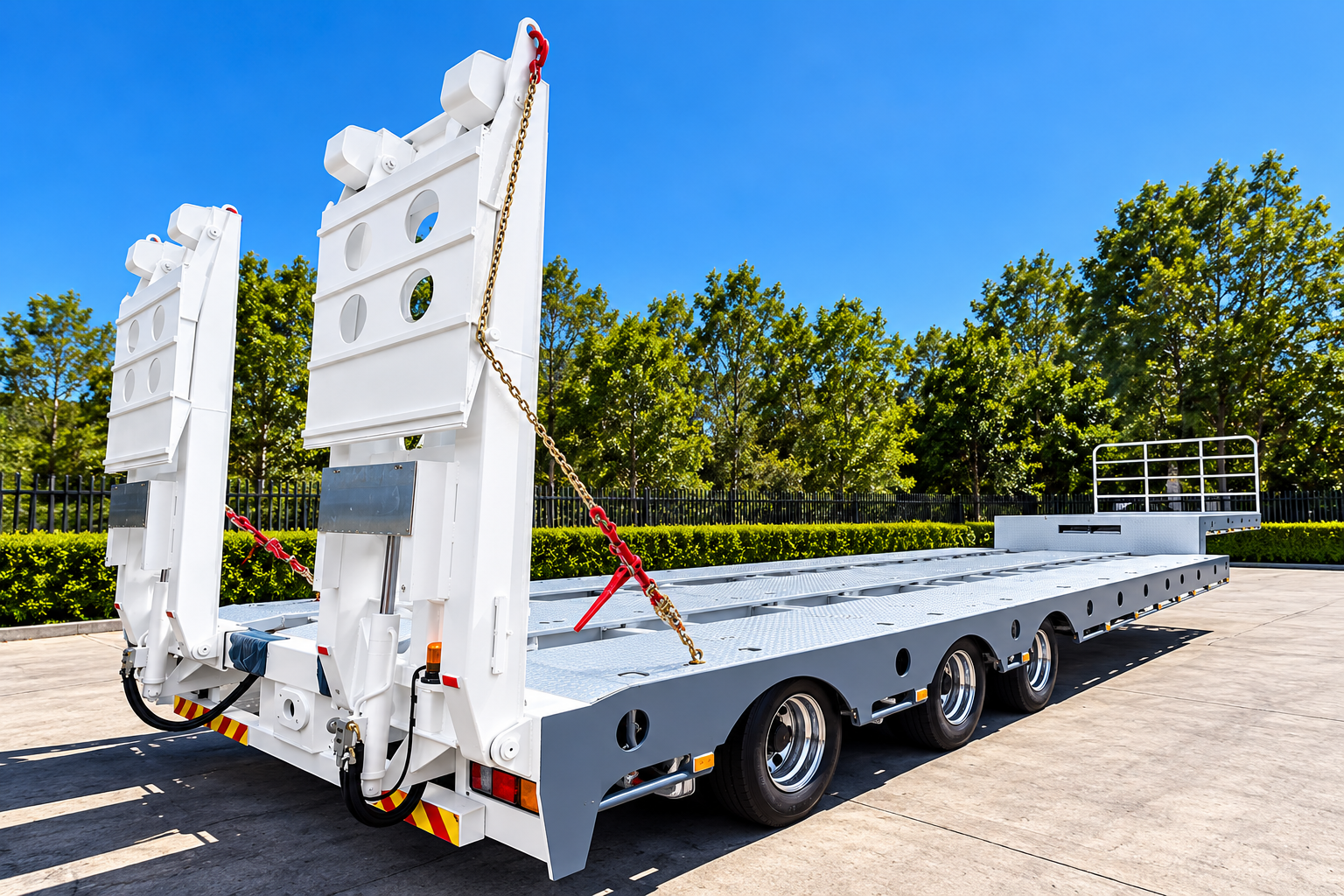

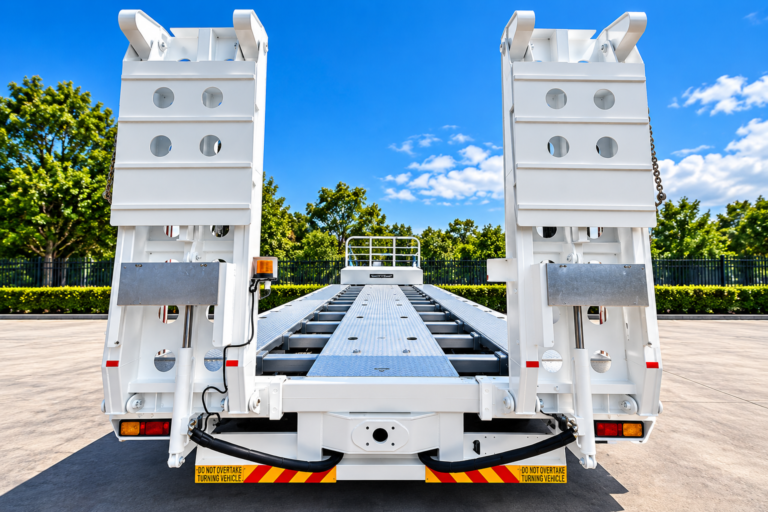

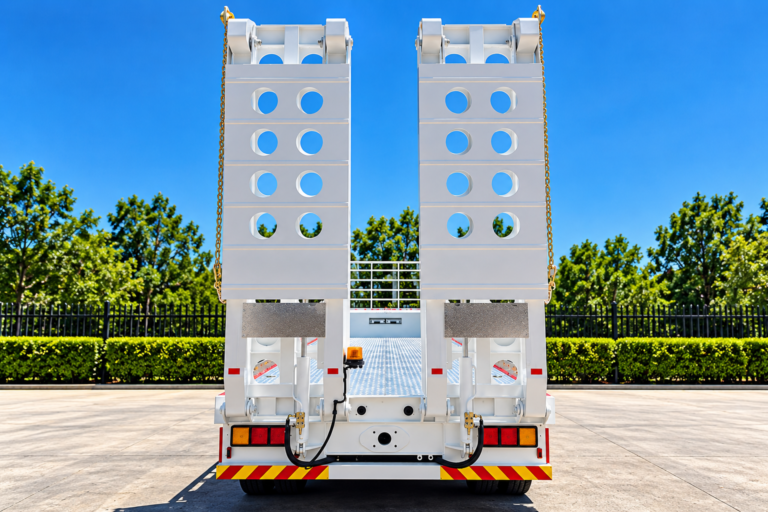

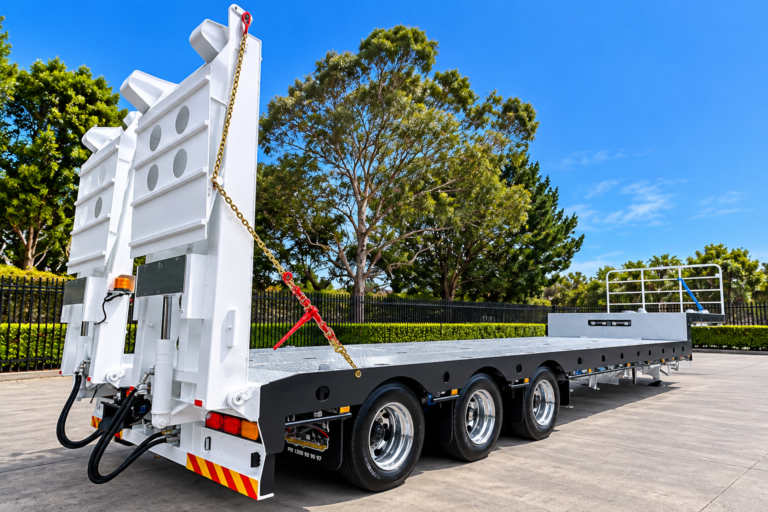

• Ramps: Reinforced hydraulic bi-fold ramps with excellent loading angle
• Power: Diesel powerpack, plus PTO hydraulic option

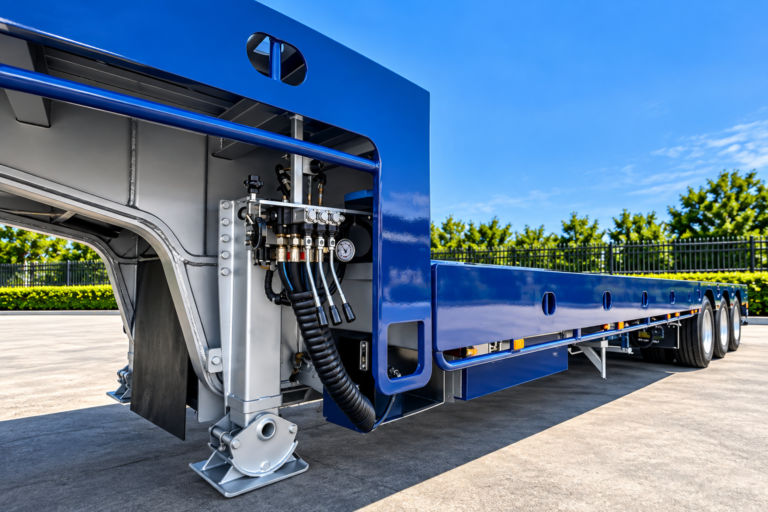

• Controls: Wireless remote & manual levers for deck and ramps

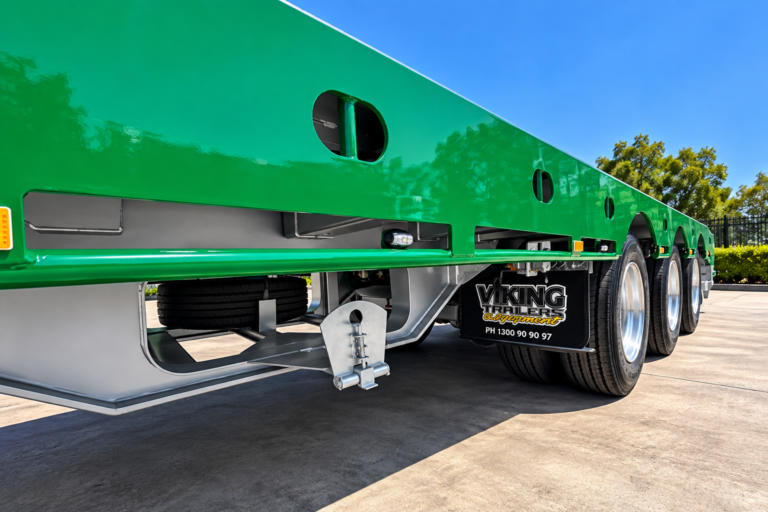

• Container Handling: 3-way container pins & pedestals

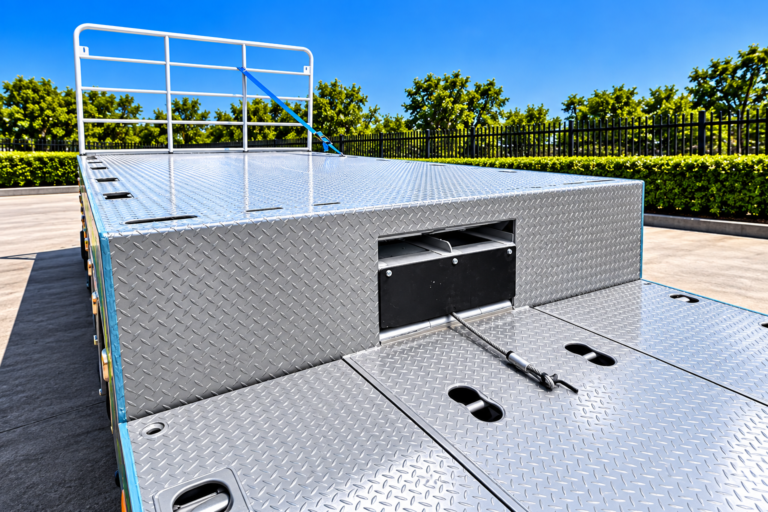

• Deck Access: Slide-out top deck ramps
• Load Securement: Chain bars in deck & 4 load binders to upper deck
• Finish: 2-pack paint, optional coloured coaming rails & deck
• Wheels & Tyres: Steel 10-stud with 235/75R 17.5
• Spares: Spare wheel with dual tyre carrier
• Lighting & Safety: Multi-volt LED lights, oversize safety signs & rear flashing light
• Storage: 2 x toolboxes
• Permit: Permit to transport
OPTIONS +
• Paint colour
• Polished/Chrome outer wheels
• Ring Feeder and plumbing

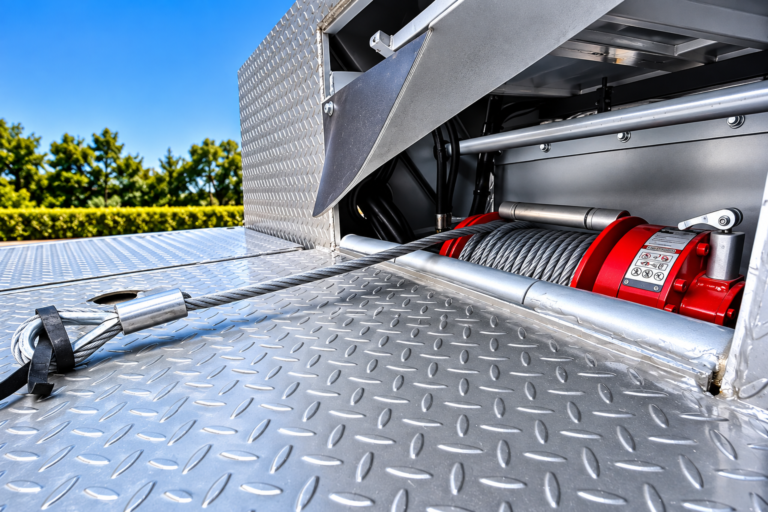

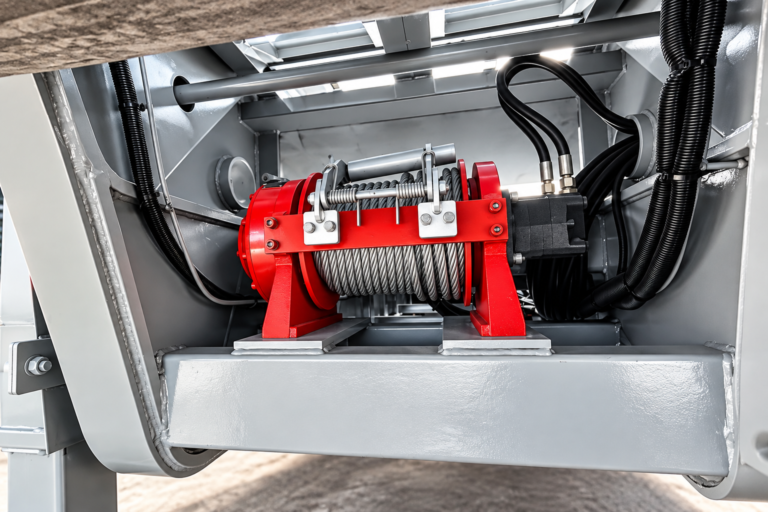

• Winch
• PTO hydraulic
WARRANTY & SUPPORT +
12 Month Australia-Wide Warranty
Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.
For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97
WIDENER 19.5
VIEW SPECIFICATIONS +
• Trailer: 45ft Drop Deck Widener Machinery & Freight Semi-Trailer
• Rating: 45 ATM, 25-Ton rated at 3.5m wide
• Length: 13,700mm (45ft)
• Width: 2,495mm, widens to 3,500mm
• Deck Height: 990mm
• Axles: 19.5 K-Hitch 11.5-ton tri-axle
• Suspension: K-Hitch airbag suspension with raise/lower valve
• Braking: EBS braking system
• Floor: 5mm high-tensile checker-plate steel
• Structure: 8mm coaming rails & triple-reinforced gooseneck
• Coupling: Ringfeeder bracket
• Landing Gear: JOST 2-speed landing legs
• Kingpin: 2-position bolt-in kingpin
• Ramps: Reinforced hydraulic bi-fold ramps with excellent loading angle
• Power: Diesel powerpack
• Controls: Wireless remote & manual levers for deck and ramps
• Container Handling: 3-way container pins & pedestals
• Deck Access: Slide-out top deck ramps
• Load Securement: Chain bars in deck & 4 load binders to upper deck
• Finish: 2-pack paint, optional coloured coaming rails & deck
• Wheels & Tyres: Steel 10-stud with 265/70R 16-ply 19.5
• Spares: Spare wheel with dual tyre carrier
• Lighting & Safety: Multi-volt LED lights, oversize safety signs & rear flashing light
• Storage: 2 x toolboxes
• Permit: Permit to transport
OPTIONS +
• Paint colour
• Polished/Chrome outer wheels
• Ring Feeder and plumbing
• Winch
WARRANTY & SUPPORT +
12 Month Australia-Wide Warranty
Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.
For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97
