SIDE TIPPERS

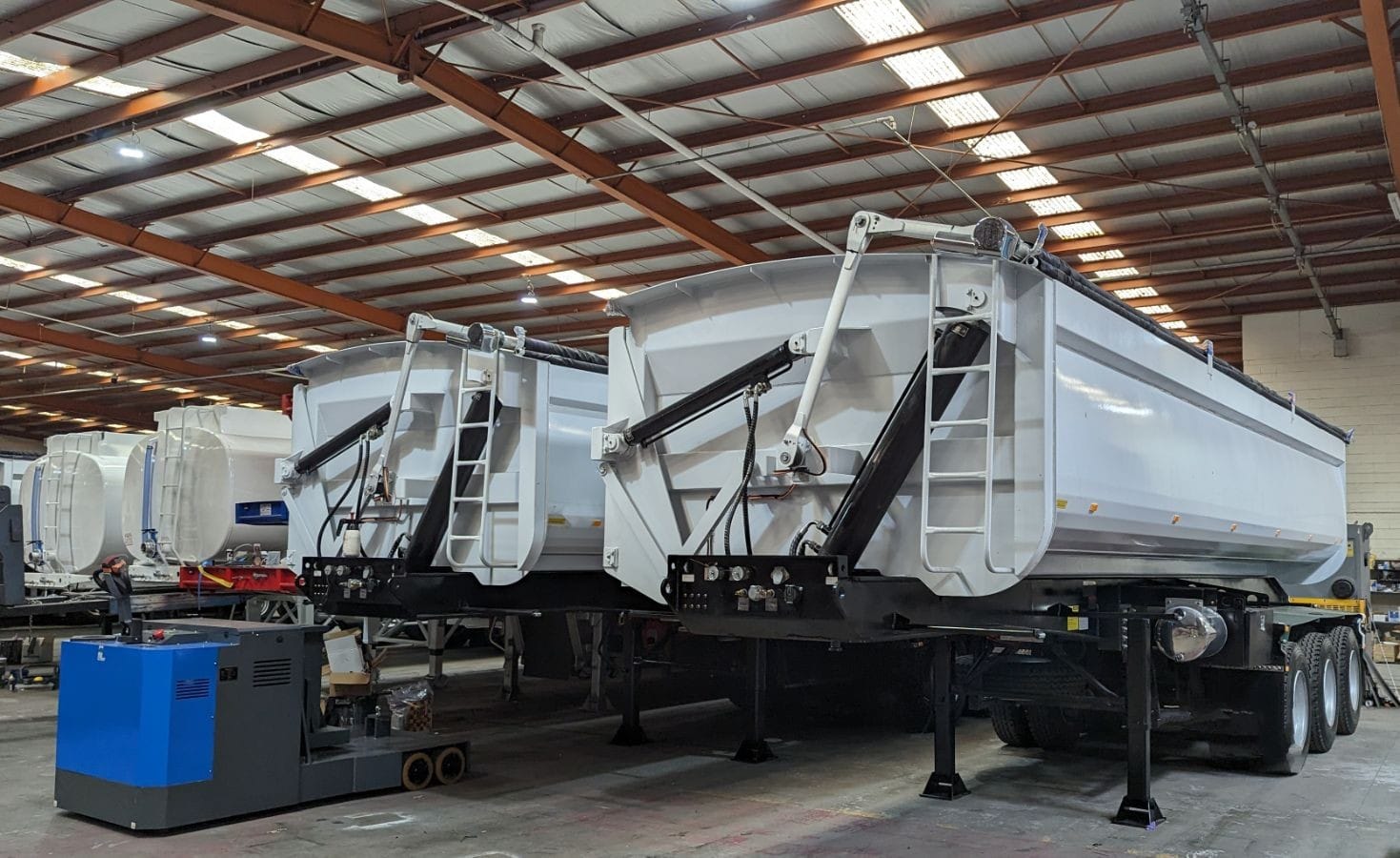

Viking Side Tipper Trailers are built for demanding Australian bulk haulage operations where strength, reliability and efficient unloading are essential. Our heavy-duty side tipper semi trailers are designed for transporting bulk materials across construction, civil, mining, agricultural and commercial transport applications, with multiple configurations and equipment options available. Built with quality components and backed by a 12-month Australia-wide warranty, Viking is committed to supplying some of the best Side Tipper Trailers in Australia for operators who need serious equipment for serious work.

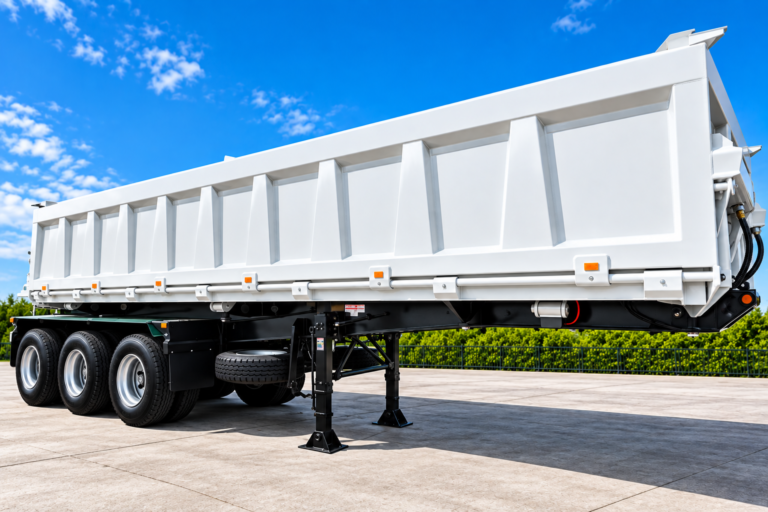

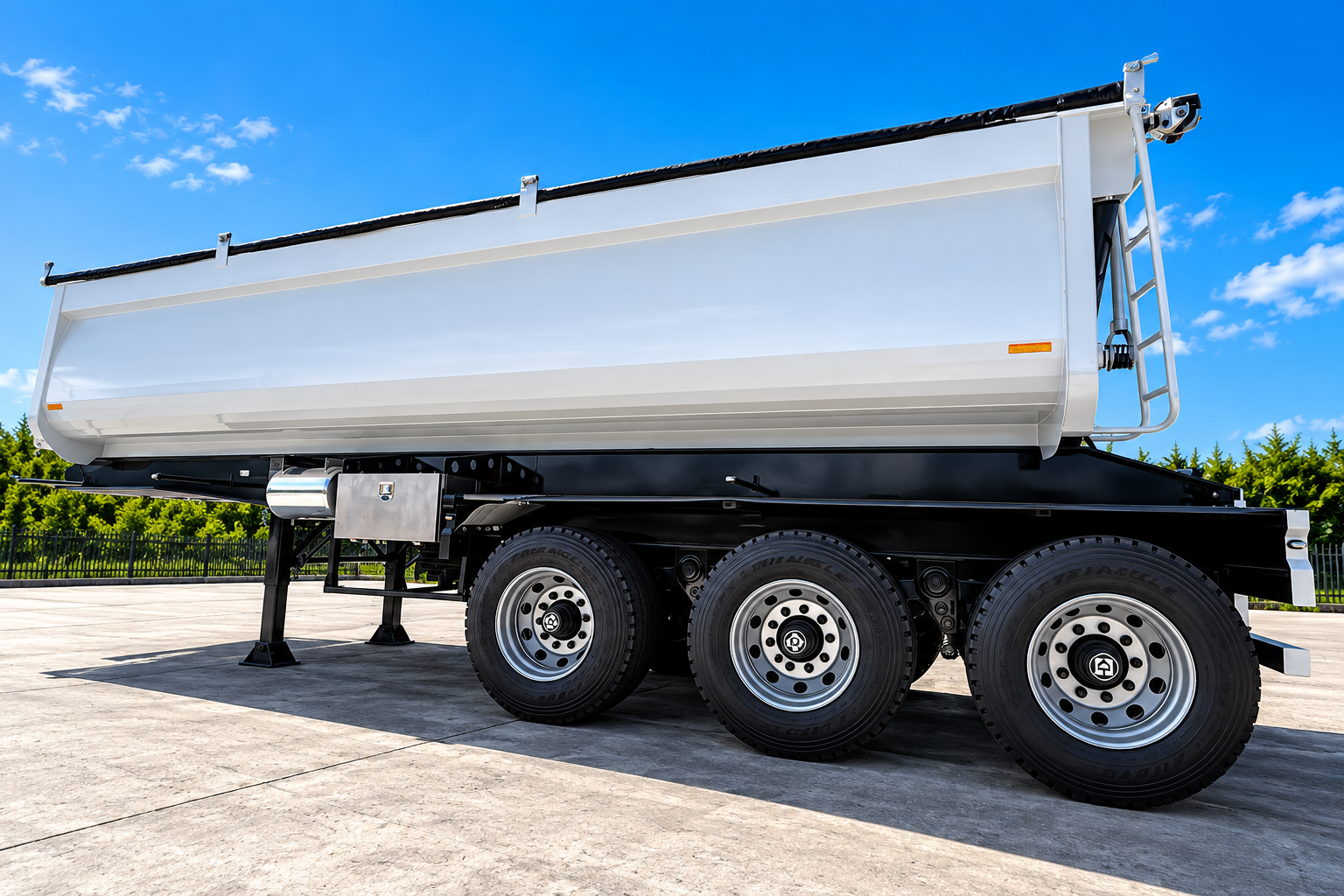

SIDE TIPPER TRI
VIEW SPECIFICATIONS +
• Trailer: Tri-Axle Side Tipper
• Capacity: 25m³ rock/gravel capacity
• ATM: 45 Tonne
• Tare: Approx. 10.5 Tonne
• Body: 6m floor with 5mm sides
• Running Gear: K-Hitch 11.5-tonne 10-stud axles

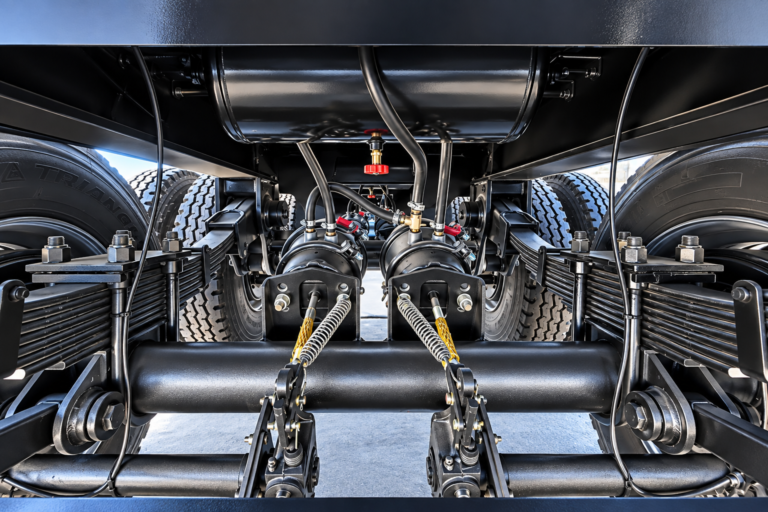

• Suspension: K-Hitch heavy-duty spring suspension
• Wheels & Tyres: 265/11R22.5 steel rims with 16-ply tyres
• Braking: EBS braking system
• Kingpin: Jost 50mm kingpin

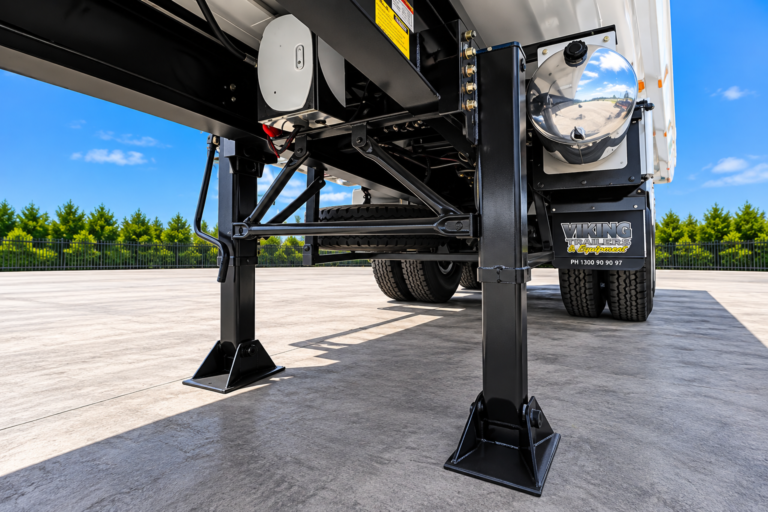

• Landing Gear: Jost 2-speed landing legs

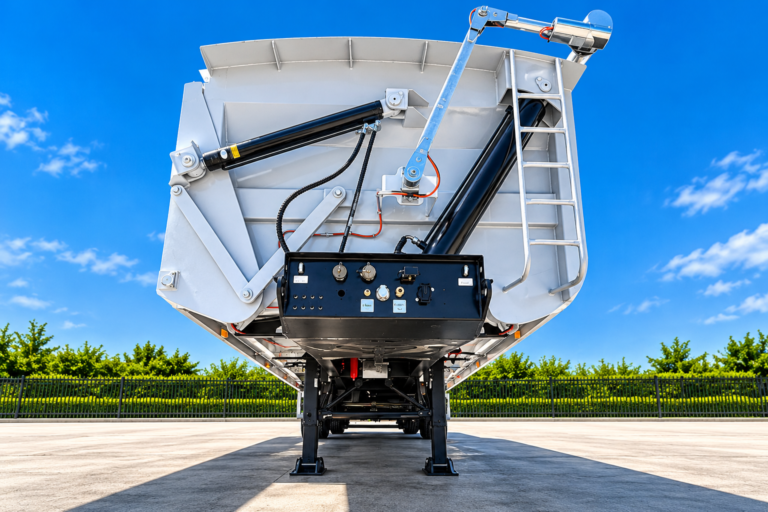

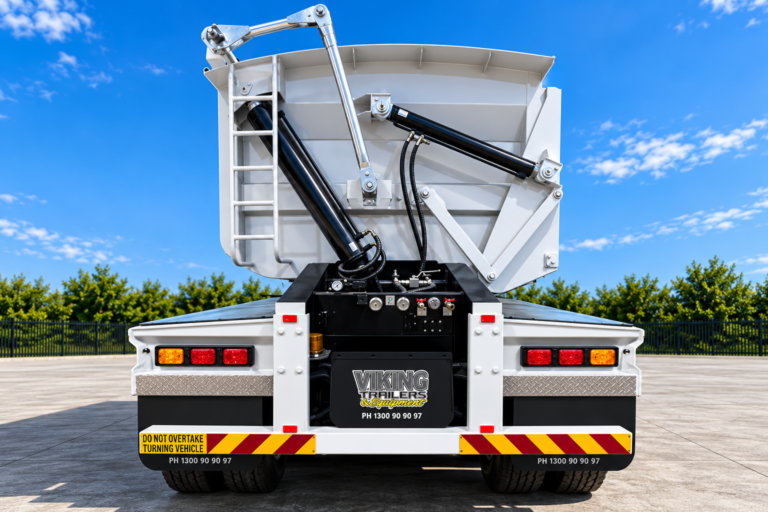

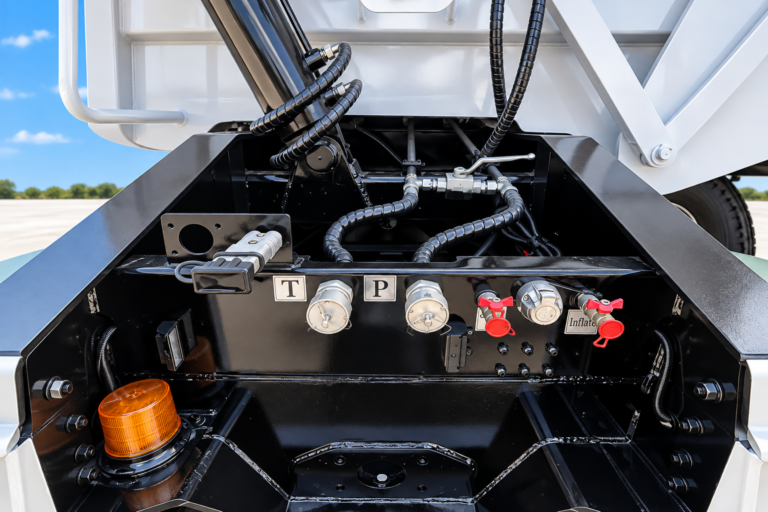

• Hydraulics: PTO-powered hydraulic rams with hydraulic lines plumbed ready for PTO connection
• Controls: Handheld remote control for tipping operation
• Tarp: Electric 12V tarp (no warranty on tarp)

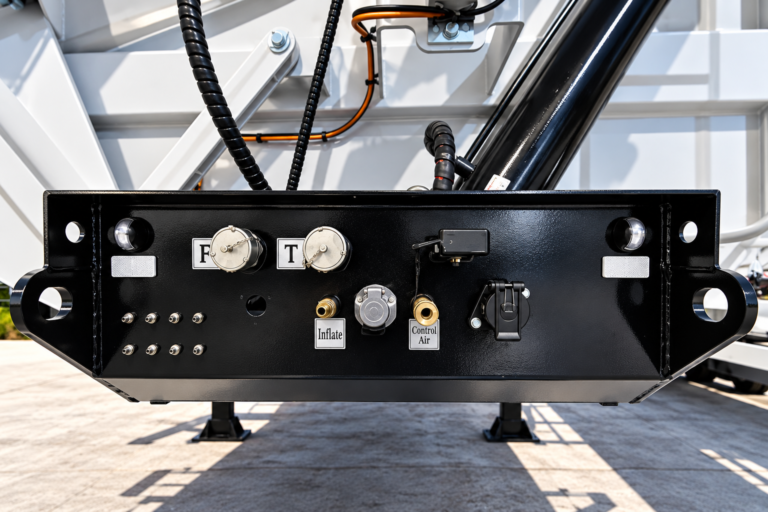

• Road Train: Road train bracket with air connection
• Brake System: Full BR-R/T brake system with EBS cable fitted
• Lighting: Multi-volt LED lighting system
• Guards: Flexi guards

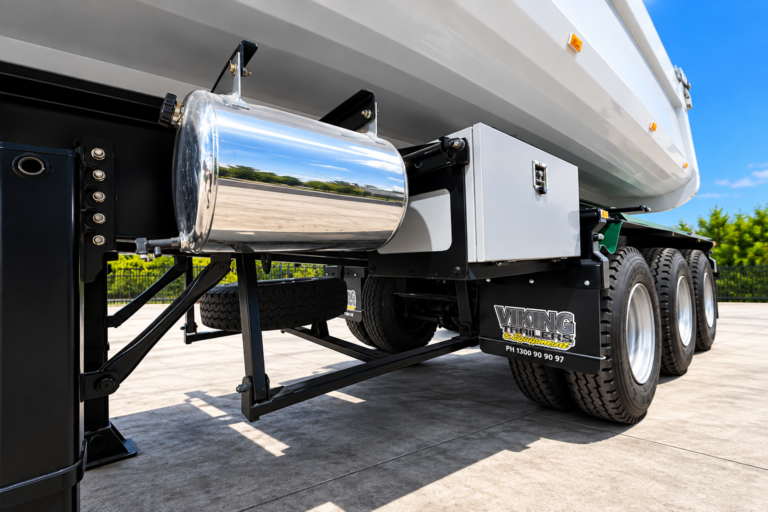

• Storage: Toolbox & water tank

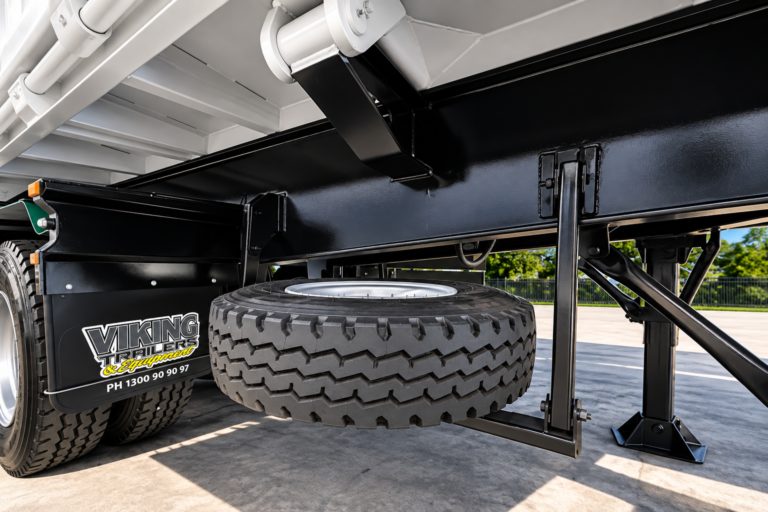

• Spares: 1 x spare tyre with dual tyre carrier
• Colour: White bin with black chassis
• Safety: All required safety signage with rear flashing light
• Permit: Permit supplied for transport
OPTIONS +
• Polished/Chrome outer wheels
• Ring Feeder and plumbing
• PTO
WARRANTY & SUPPORT +
12 Month Australia-Wide Warranty
Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.
For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97

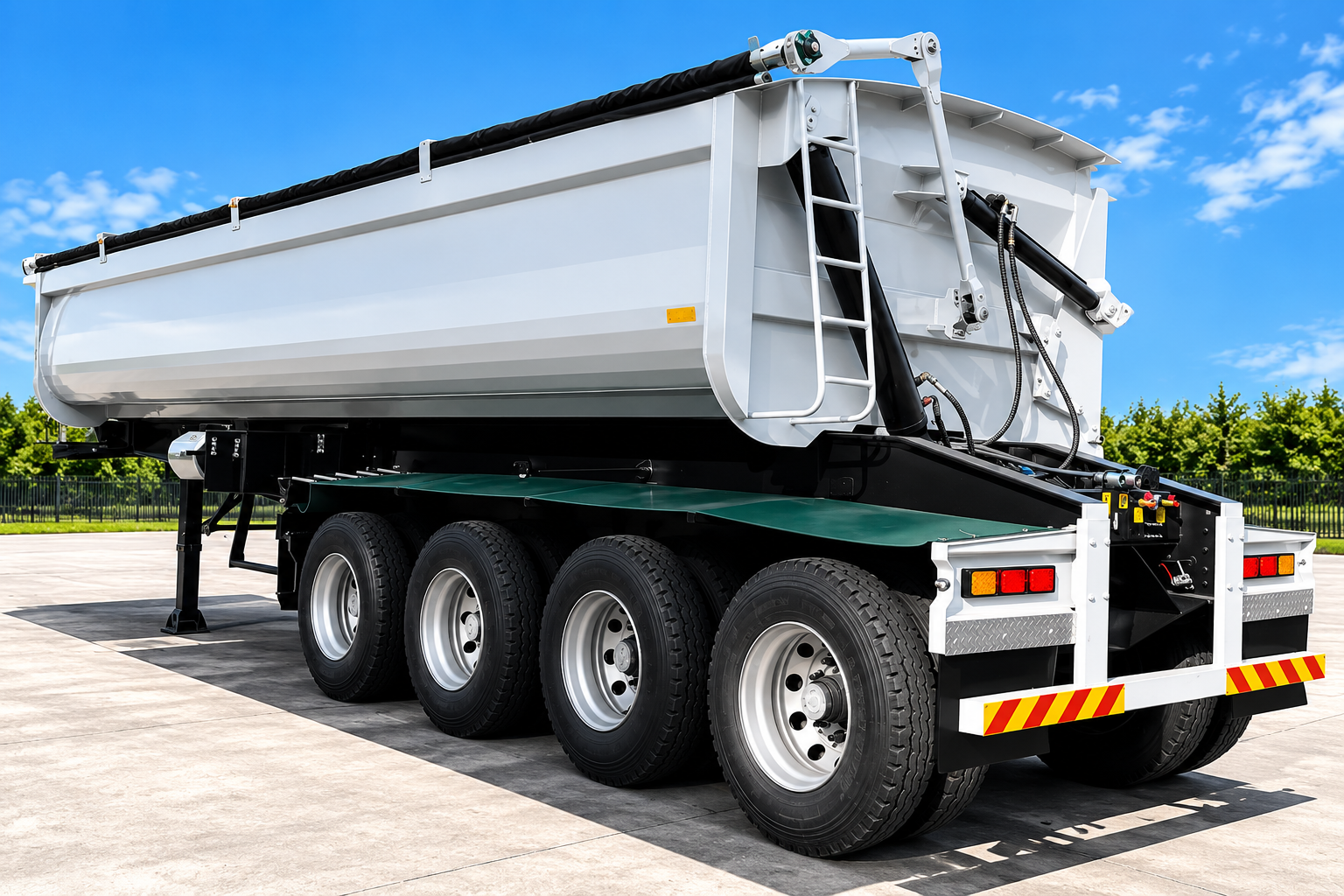

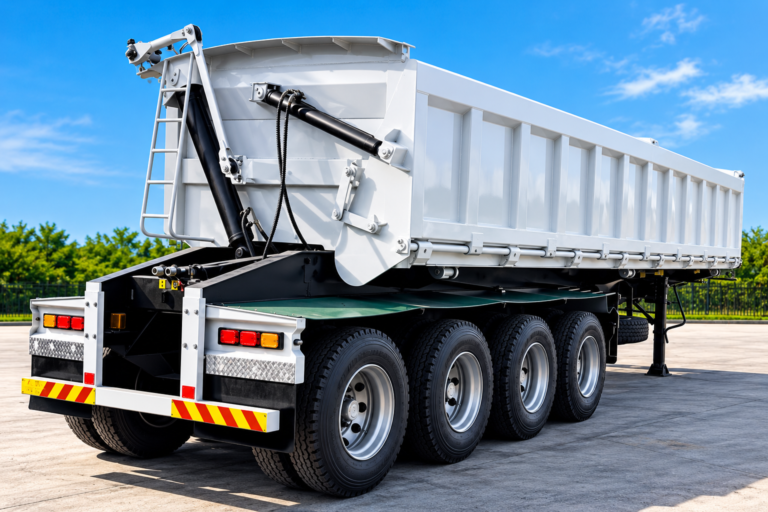

SIDE TIPPER QUAD
VIEW SPECIFICATIONS +
• Trailer: Quad-Axle Side Tipper Rock/Gravel Semi-Trailer
• ATM: 60 Tonne
• Body: 6m floor with 5mm sides
• Running Gear: K-Hitch 10-stud axles
• Suspension: K-Hitch heavy-duty airbag suspension with front lift-up axle
• Wheels & Tyres: 11R22.5 tyres with steel rims
• Braking: EBS braking system
• Kingpin: Jost 50mm bolt-on kingpin
• Landing Gear: Jost 2-speed landing legs
• Hydraulics: PTO-powered HYVA hydraulic rams with hydraulic lines plumbed ready for PTO connection
• Controls: Handheld remote control for tipping operation
• Tarp: Electric 12V tarp (no warranty on tarp)
• Road Train: Road train bracket with air connection
• Brake System: Full BR-R/T brake system
• Lighting: LED lighting system
• Guards: Flexi guards
• Storage: 1 x toolbox & water tank
• Spares: 1 x spare tyre with dual tyre carrier
• Colour: White bin with black chassis
• Safety: All required safety signage with rear flashing safety light
• Permit: Permit supplied for transport
OPTIONS +
• Polished/Chrome outer wheels
• Ring Feeder and plumbing
• PTO
WARRANTY & SUPPORT +
12 Month Australia-Wide Warranty
Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.
For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97
