QUAD FLOATS

Viking Quad Float Trailers are engineered for serious heavy-haulage work, giving Australian transport operators the strength, stability and carrying capability required for heavy machinery, plant and equipment. Our heavy-duty quad-axle float semi trailers are available with multiple configurations and equipment options to suit demanding machinery transport applications. Built with quality components and backed by a 12-month Australia-wide warranty, Viking is committed to supplying some of the best Quad Float Trailers in Australia for operators who need dependable equipment built for serious work.

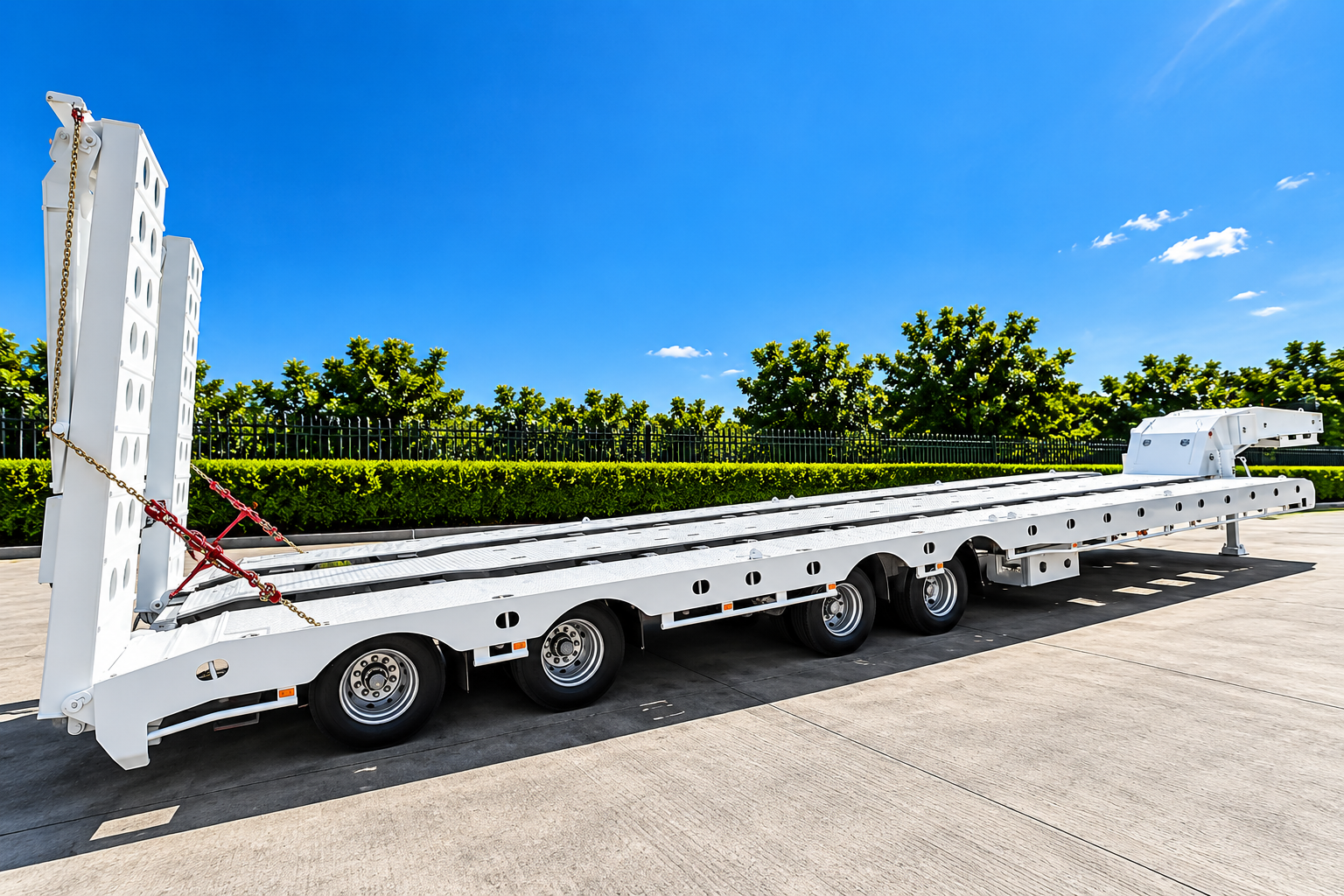

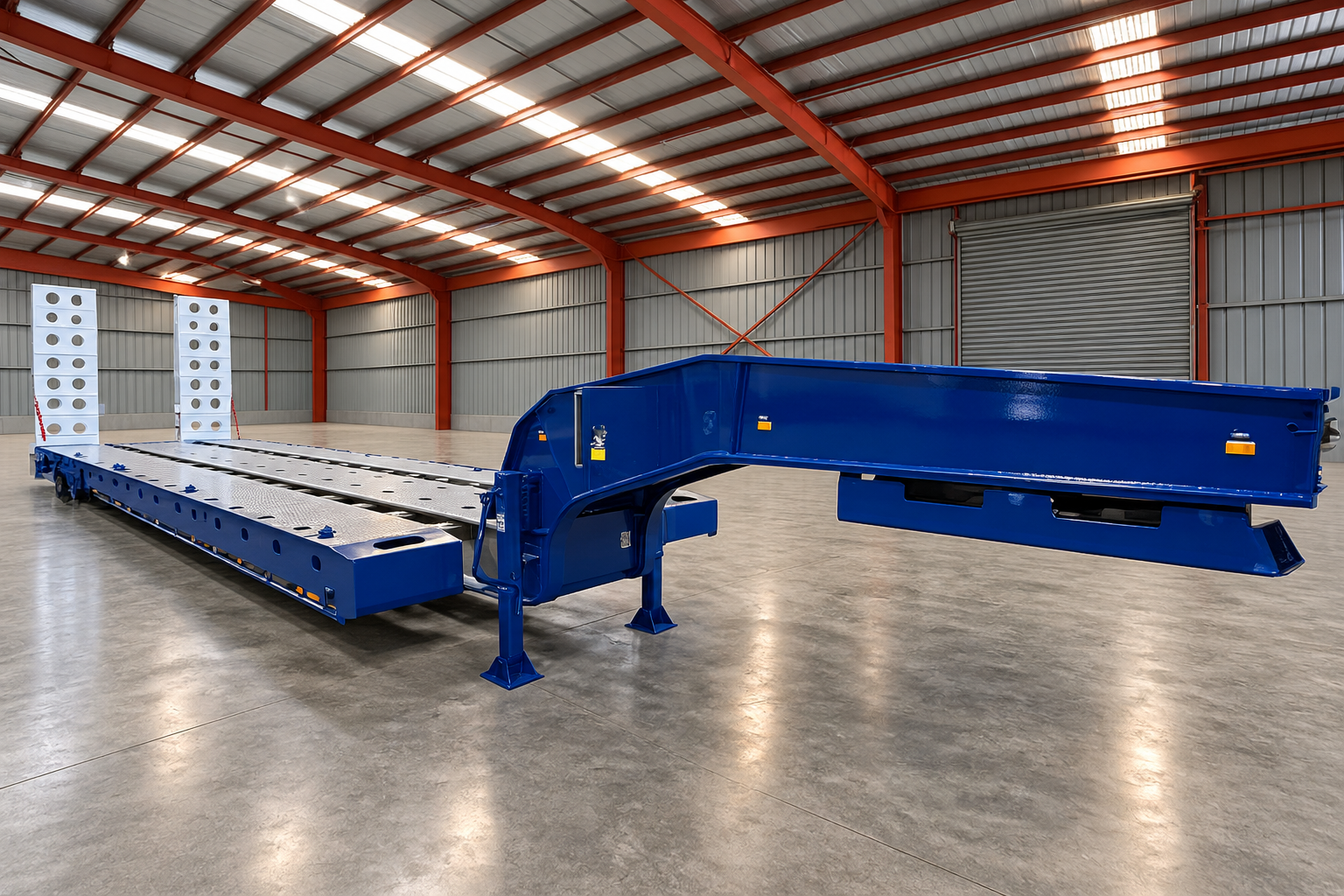

FLOAT 52FT

• Type: Quad Axle Float Machinery Trailer
• Deck Length: 52ft
• Deck Height: 900mm
• Carrying Capacity: Up to 49.5 Tonne with our Matching Viking Dolly
• ATM: 50 Tonne
• GTM: 34 Tonne
• Tare: 13.68 Tonne
• Usable Deck Length: 11.1m

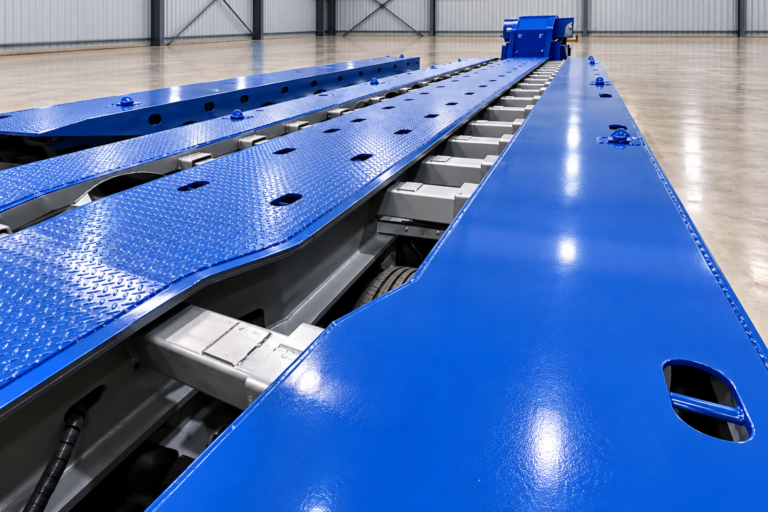

• Width: 2.5m, widens to 3.5m
• Container Handling: Container pins for 20ft
• Load Securement: Chain slots & tie-down points in deck
• Skid Plate: Oscillating skid plate with 2-position bolt-on pin

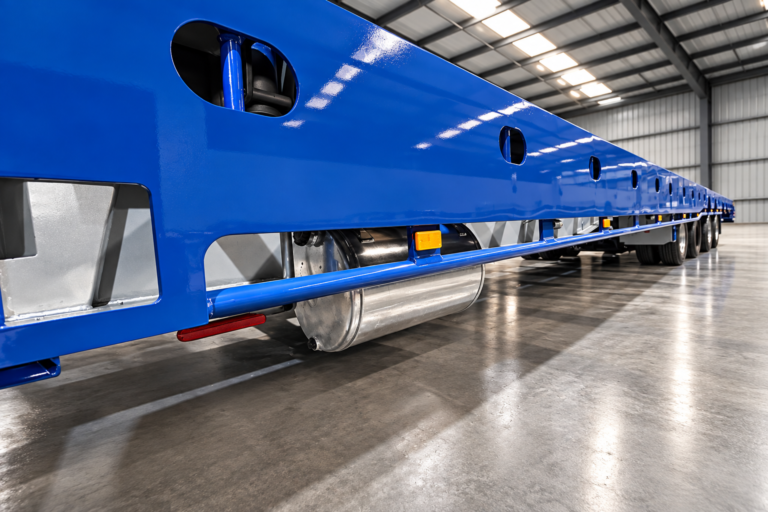

• Suspension: Airbag suspension with auto lift front axle (drops at 6.5t deck load)
• Axles: Rear steer axle

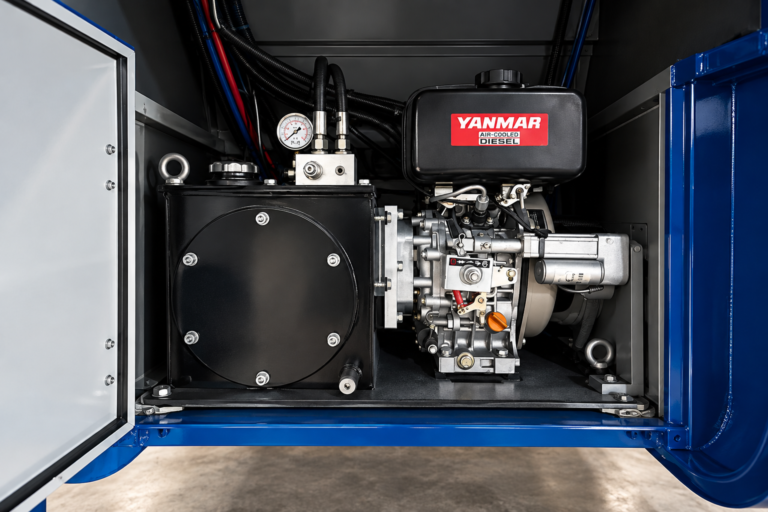

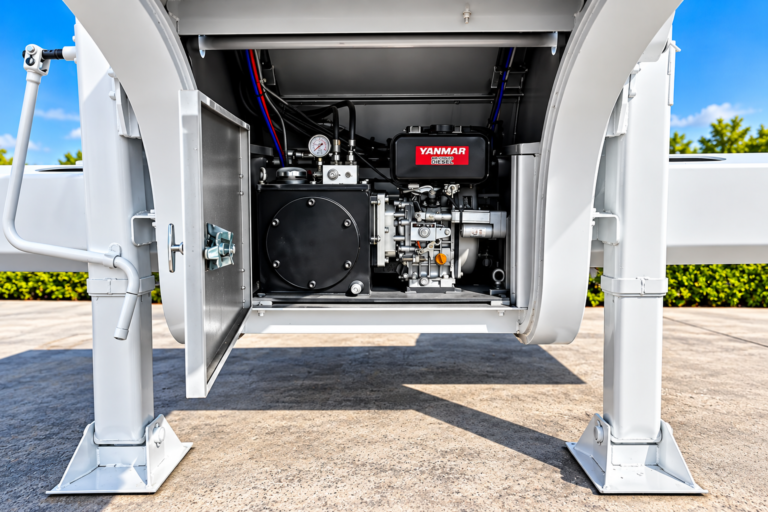

• Hydraulics: Yanmar diesel powerpack or PTO hydraulic operation
• Controls: Wireless handheld remote + manual hydraulic controls
• Ramps: Heavy-duty bi-fold loading ramps
• Landing Gear: Jost landing legs

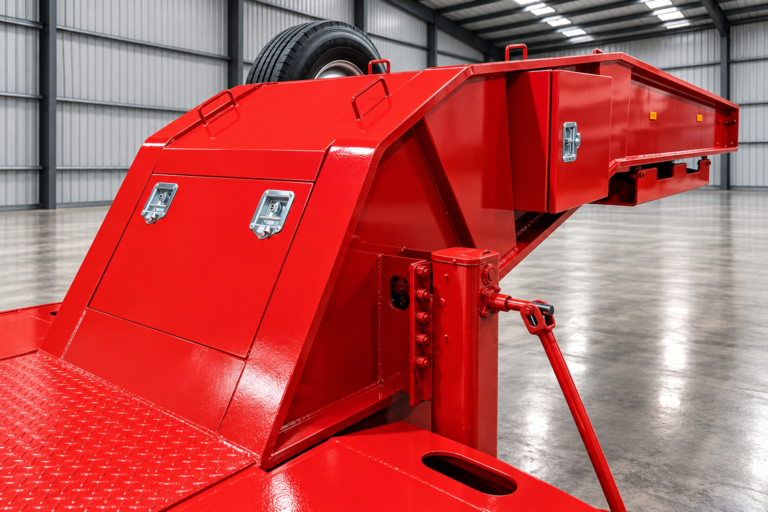

• Equipment: 2 x toolboxes & water tank
• Safety: Oversize signs & rear safety light
• Compliance: Ready for registration & delivery
• Paint: Optional 2-pack paint colours to coaming rails & deck
• Permit: Permit supplied for transport

• Paint colour
• Polished/Chrome outer wheels
• PTO

12 Month Australia-Wide Warranty

Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.

For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97

FLOAT 55FT

• Type: Quad Axle Float Machinery Trailer
• Deck Length: 55ft
• Deck Height: 920mm
• Carrying Capacity: Up to 49.5 Tonne with our Matching Viking Dolly
• ATM: 60 Tonne
• GTM: 34 Tonne
• Tare: 16.38 Tonne
• Usable Deck Length: 12.3m
• Width: 2.5m, widens to 3.5m
• Container Handling: Container pins for 20ft and 40ft
• Load Securement: Chain slots & tie-down points in deck
• Skid Plate: Oscillating skid plate with 2-position bolt-on pin
• Suspension: Airbag suspension with auto lift front axle (drops at 6.5t deck load)
• Axles: Rear steer axle
• Hydraulics: Yanmar diesel powerpack or PTO hydraulic operation
• Controls: Wireless handheld remote + manual hydraulic controls
• Ramps: Heavy-duty bi-fold loading ramps
• Landing Gear: Jost landing legs
• Equipment: 2 x toolboxes & water tank
• Safety: Oversize signs & rear safety light
• Compliance: Ready for registration & delivery
• Paint: Optional 2-pack paint colours to coaming rails & deck
• Permit: Permit supplied for transport

• Paint colour
• Polished/Chrome outer wheels
• PTO

12 Month Australia-Wide Warranty

Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.

For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97

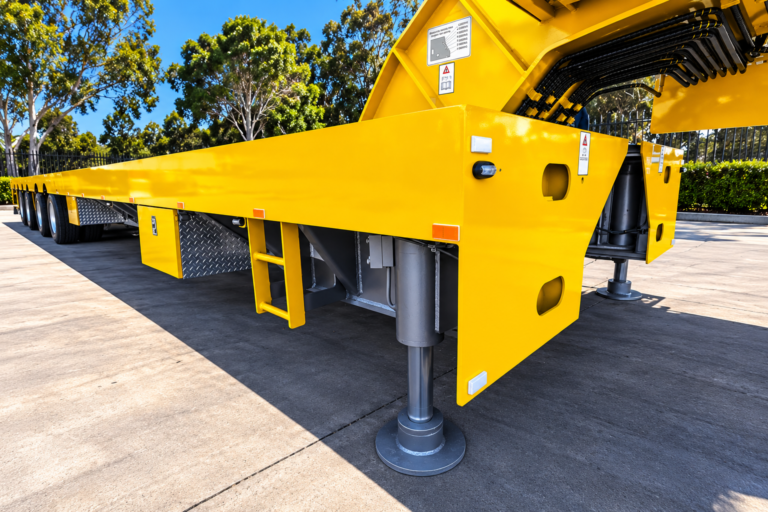

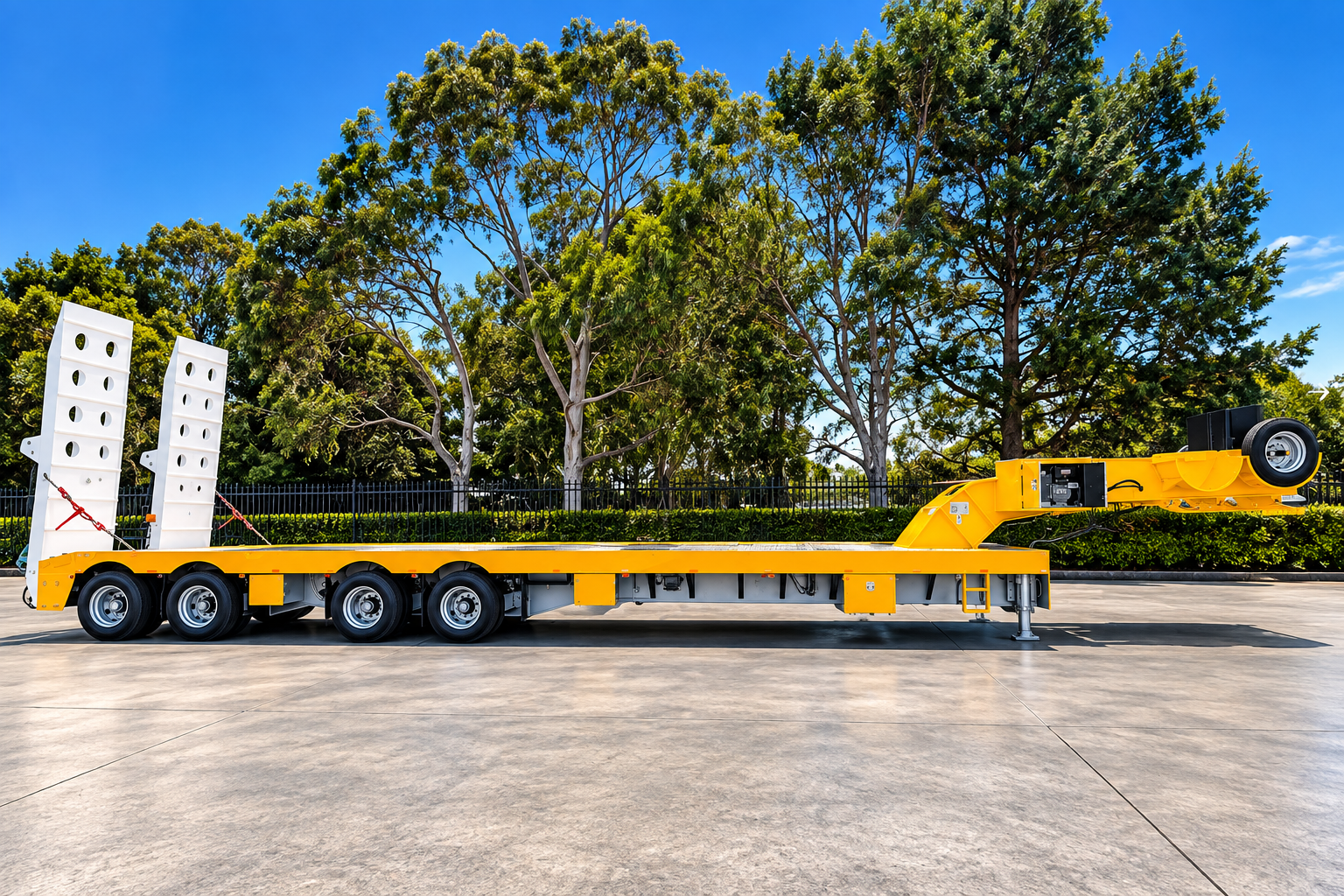

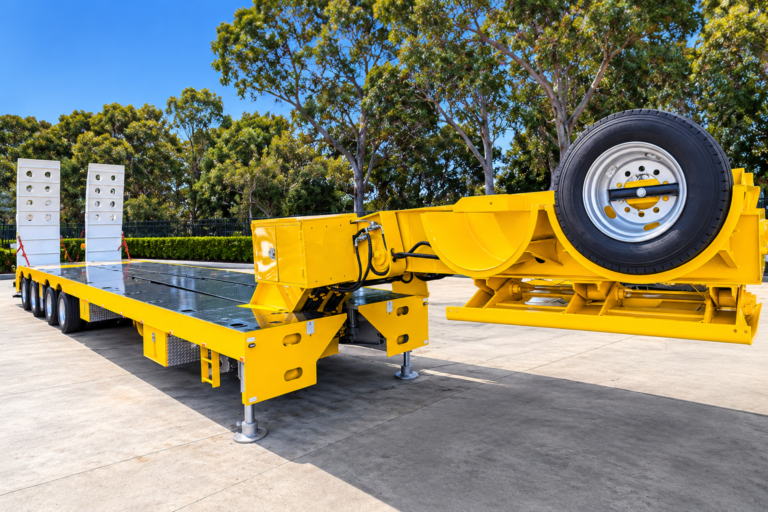

FLOAT 100 TONNE

• Type: 4×8 Axle Widener Semi-Trailer designed for heavy mining equipment, excavators & oversized/weight loads
• ATM: 100 Tonne
• Tare: Approx. 18,000kg
• Overall Length: 17,045mm
• Deck Length: 12,000mm
• Static Deck Height: 940mm

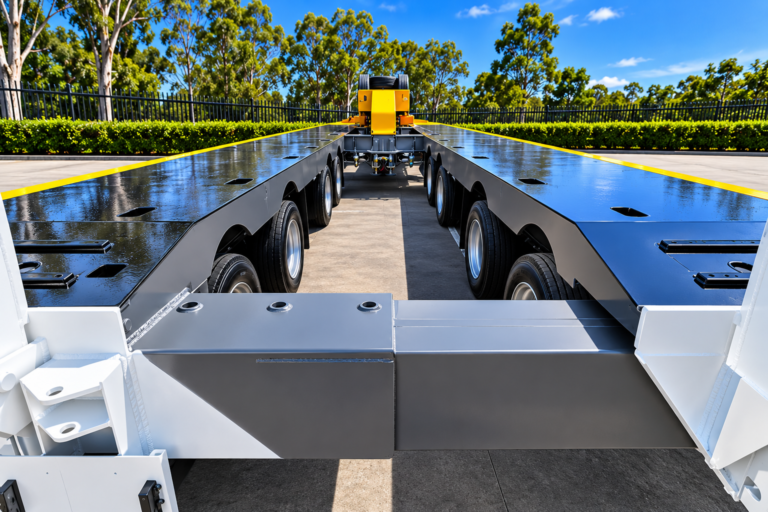

• Widening Capacity: 2.5m to 4.2m wide

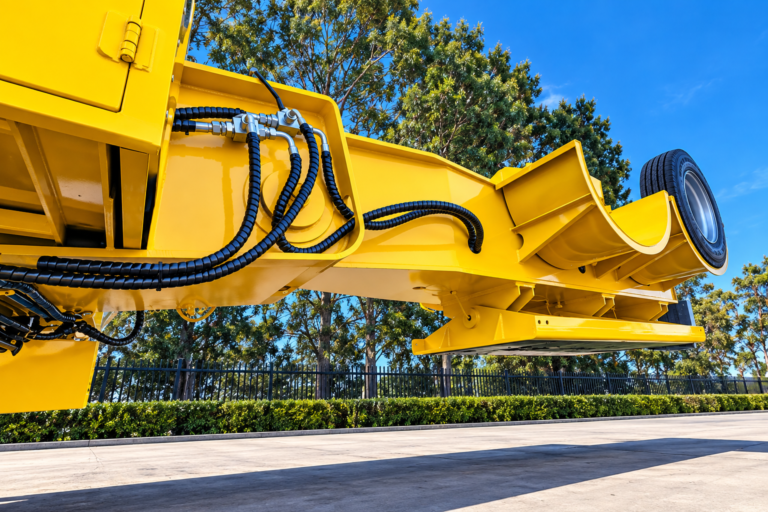

• Gooseneck: Hydraulic lift-up gooseneck with adjustable skid plate height

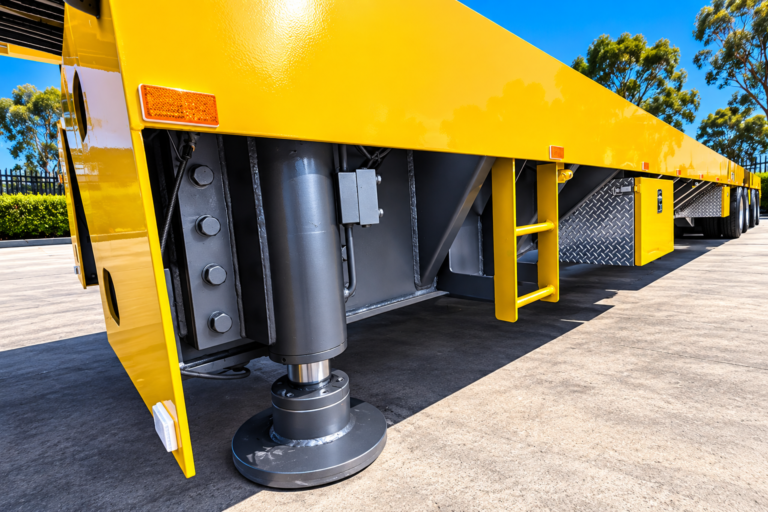

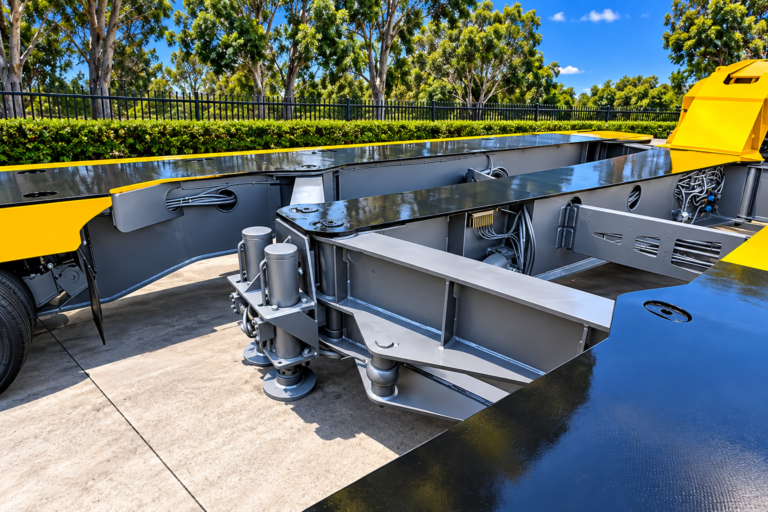

• Stability: Gooseneck widens with deck for increased stability and load capacity, with oscillating skid plate and hydraulic deck stabilisers
• Wheels & Tyres: 215/75 R17.5 – 18-ply

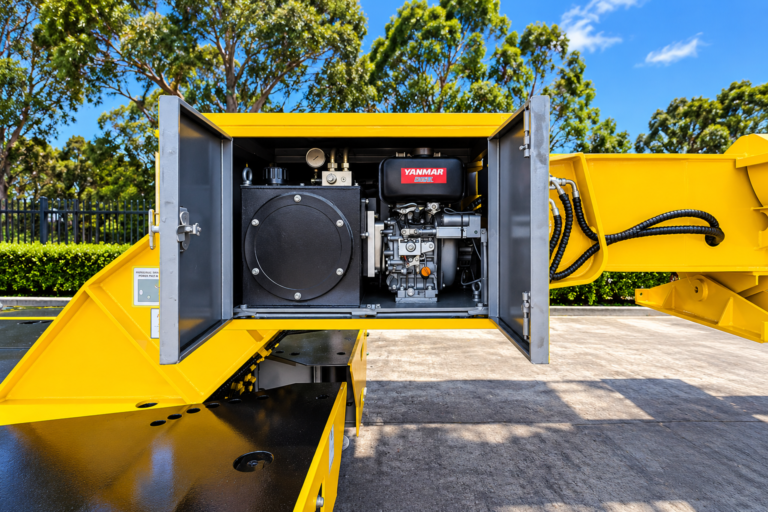

• Hydraulics: Yanmar diesel powerpack with PTO hydraulic connections for secondary operation (optional)

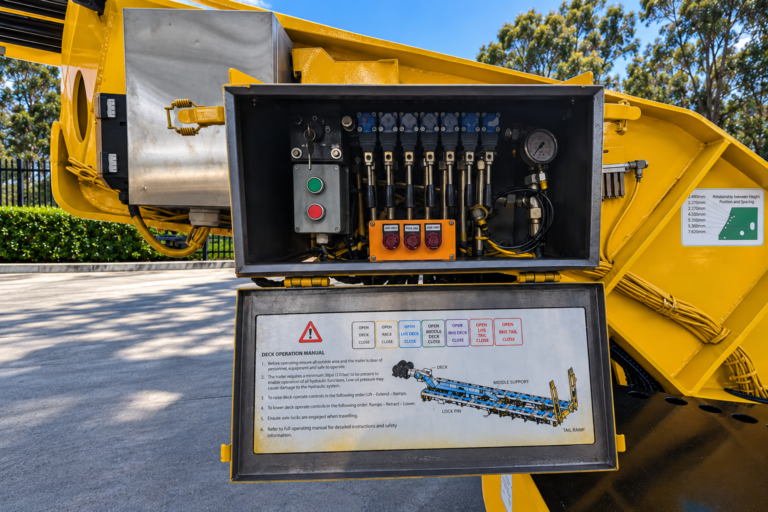

• Controls: Remote control system with hydraulic control box mounted on gooseneck
• Electronic Control System: Programmable automatic deck width settings from 2,490mm to 4,290mm
• Suspension & Axles: SSA hydraulic widening axles with trailer & airbag suspension

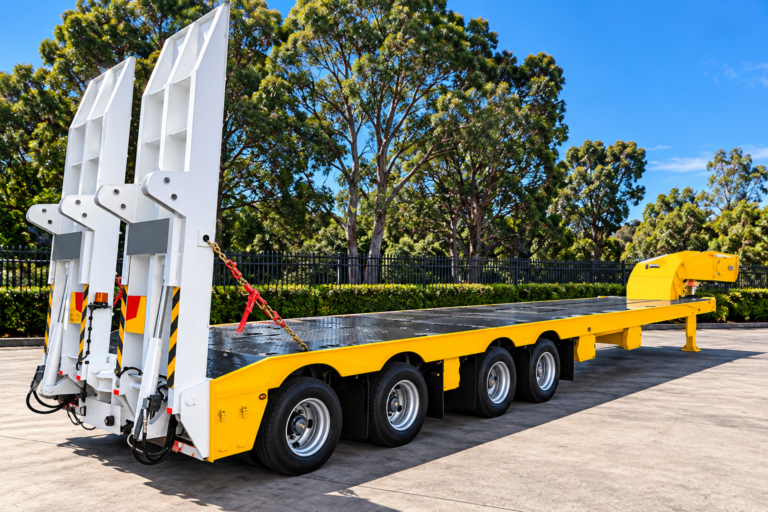

• Ramps: Heavy-duty straight loading ramps with rear beavertail
• Kingpin: 90mm JOST bolt-on kingpin
• Load Securement: Tie points integrated into deck
• Lighting: LED lighting system
• Safety: All required safety signage, Viking mudflaps & flashing safety light
• Equipment: Toolbox & water tank included
• Spares: Spare wheel included
• Paint: 2-pack paint finish with optional paint colours for coaming rails & deck
• Permit: Permit supplied for transport

• Paint colour
• Polished/Chrome outer wheels
• PTO

12 Month Australia-Wide Warranty

Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.

For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97
