DOLLIES

Viking Dolly Trailers are built for Australian transport operators who need dependable, heavy-duty equipment for road train and multi-trailer combinations. Our converter dollies are available with multiple configurations and equipment options to suit demanding freight, heavy-haulage and commercial transport operations. Built with quality components and backed by a 12-month Australia-wide warranty, Viking is committed to supplying some of the best Dolly Trailers in Australia for operators who demand strength, reliability and serious performance on the road.

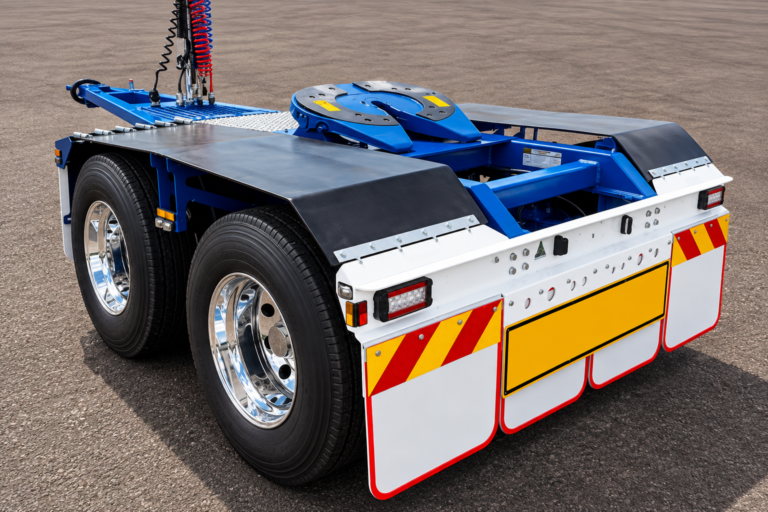

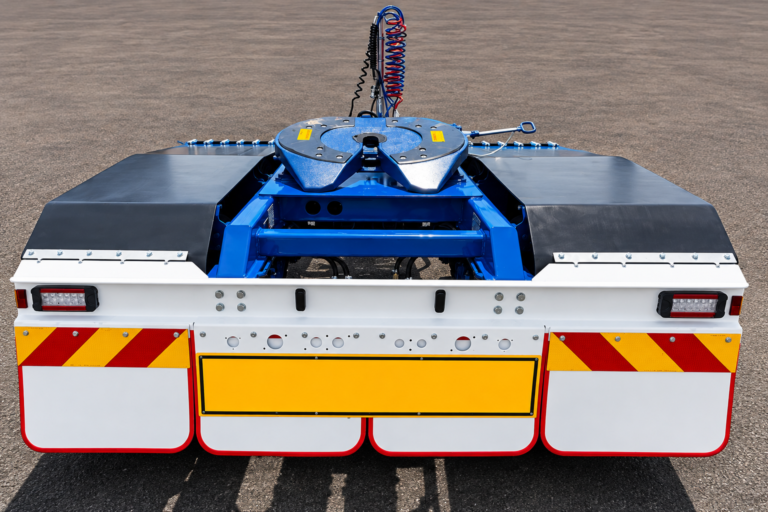

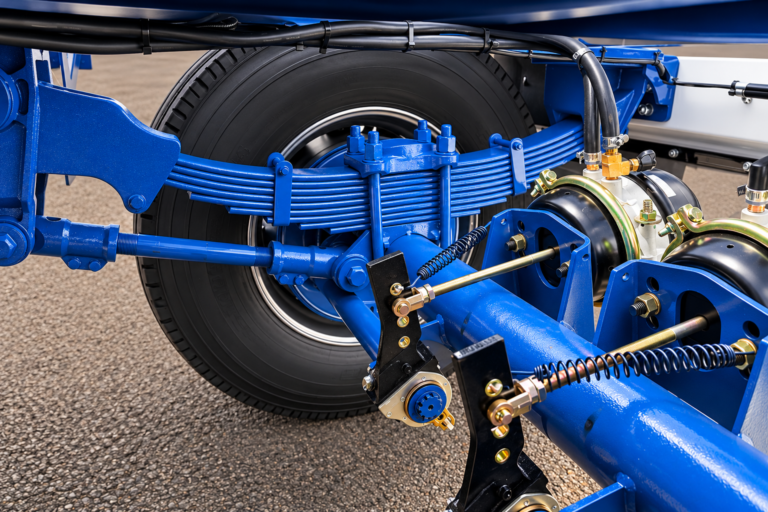

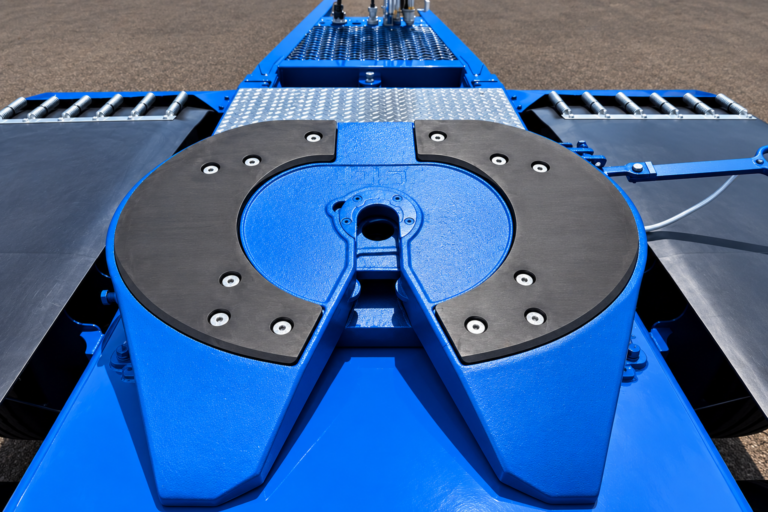

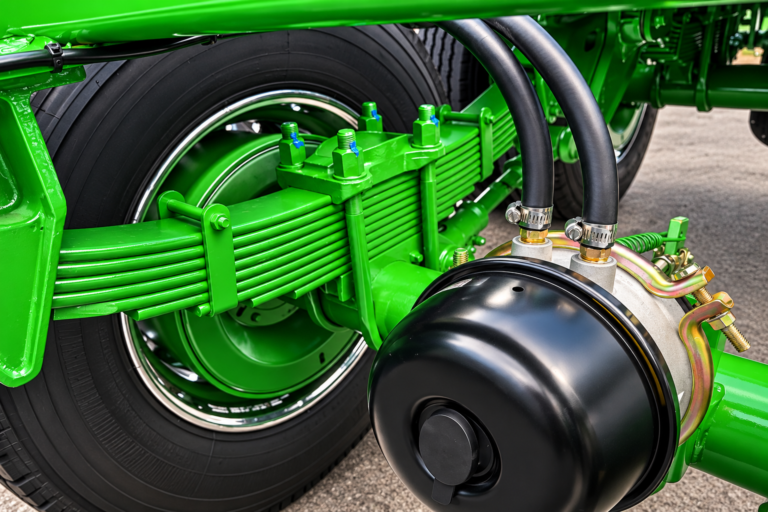

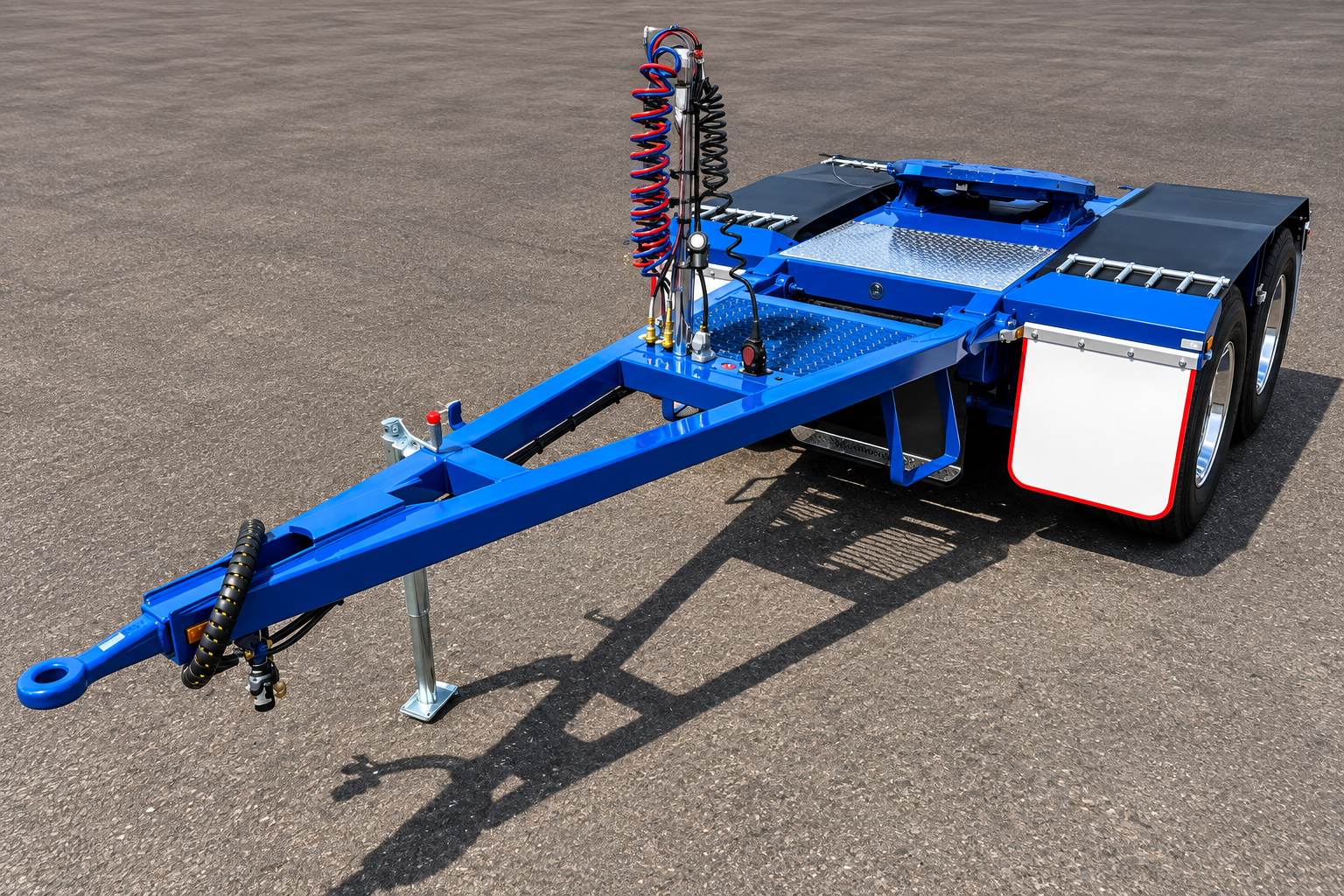

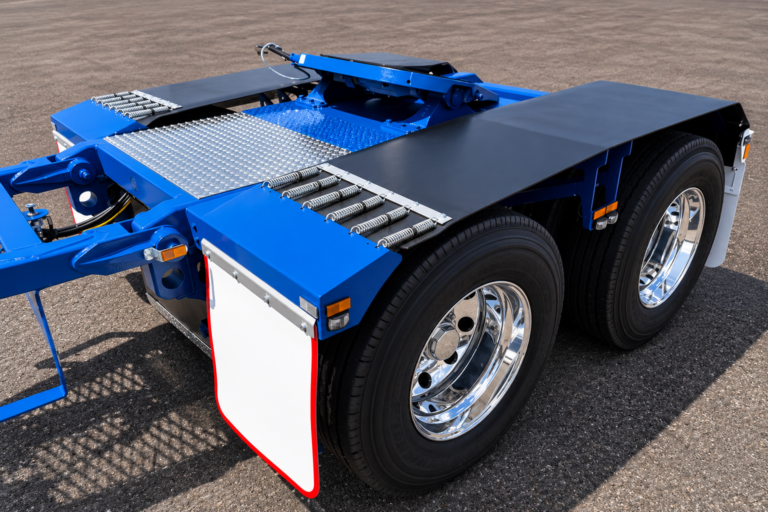

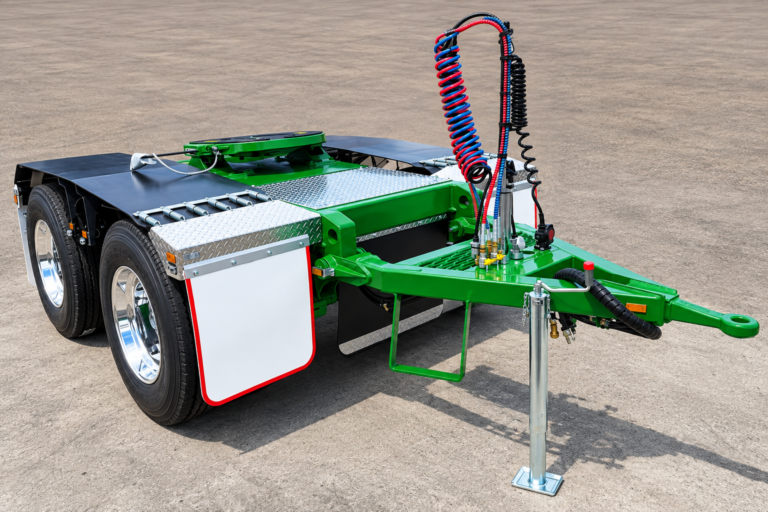

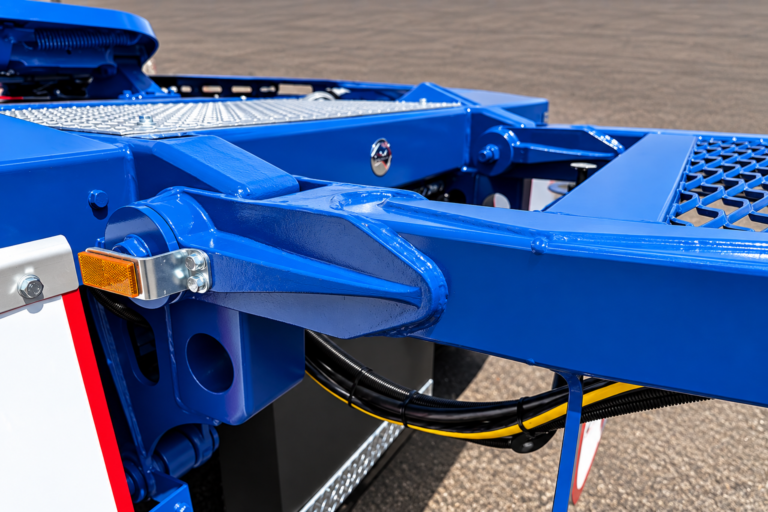

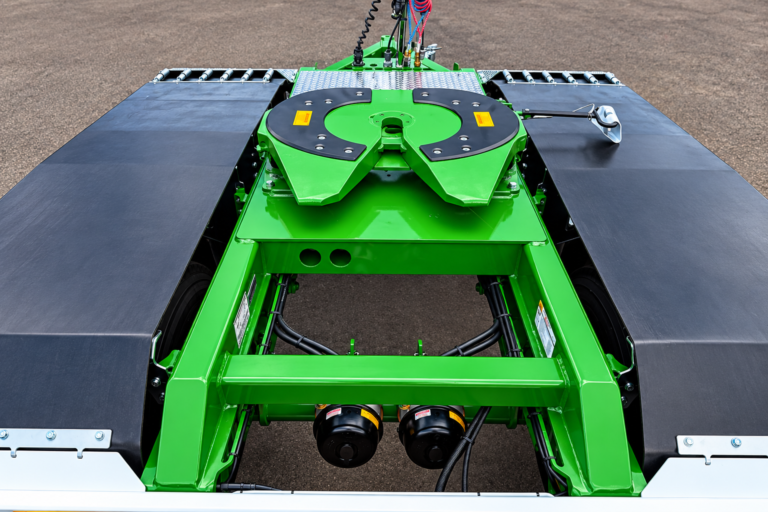

TANDEM SPRING

• Type: Tandem Axle Dolly
• Axles: Parallel Bearing Drum Brake Axles
• Disc Brakes: Optional Extra
• Wheel PCD: 10 × 285 PCD, 10 × 335 PCD or Spider
• Wheels: Alloy Wheels
• Yard Release: Included
• Turntable: Greaseless or Greasable Turntable
• Towing Eye: V.Orlandi Bolt-On Towing Eye
• Suspension: TQA 9.1 Spring Suspension
• Mudguards: Plastic Mudguard or Flexiguard
• Paint Colour: Choice of Colour
• Pull Length: Choice of Pull Length
• Drawbar: Steel Mesh on Drawbar
• Propeller Plate: Polished Front Propeller Plate
• Pull Points: Twin Drawbar Pull Point
• Hydraulic Connections: Included
• Air Connections: Included

• Disc brake axles
• Choice of wheel PCD configuration
• Choice of turntable – greaseless or greasable
• Choice of mudguard configuration
• Paint colour
• Pull length
• Polished/Chrome outer wheels

12 Month Australia-Wide Warranty

Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.

For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97

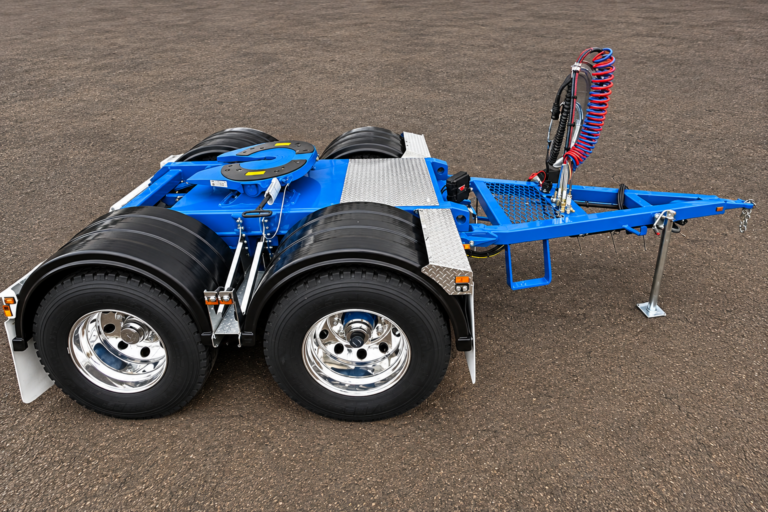

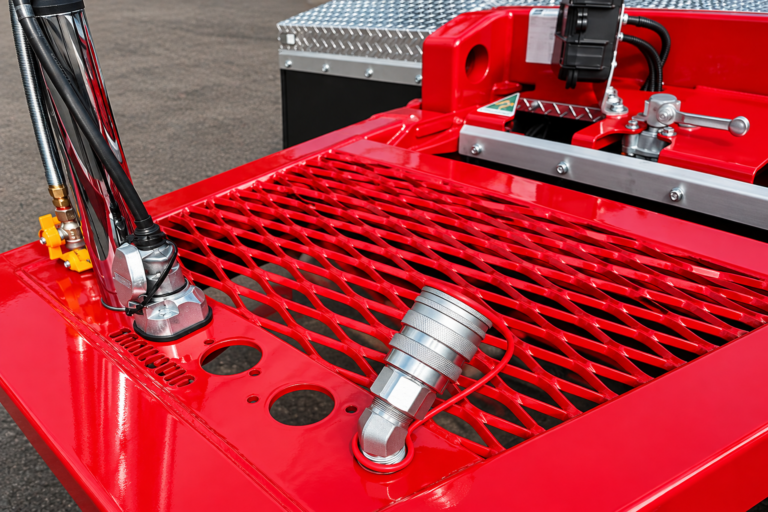

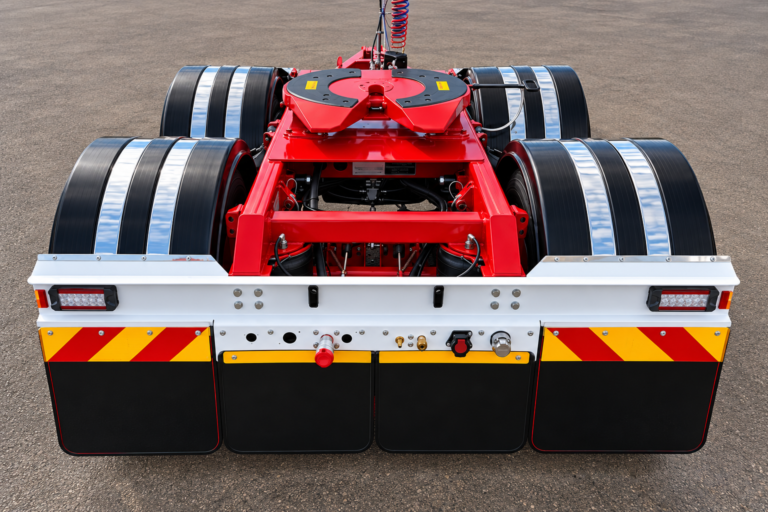

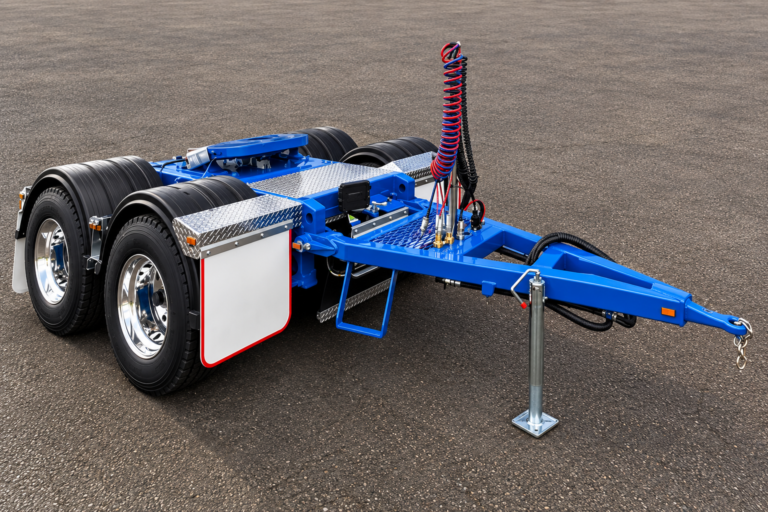

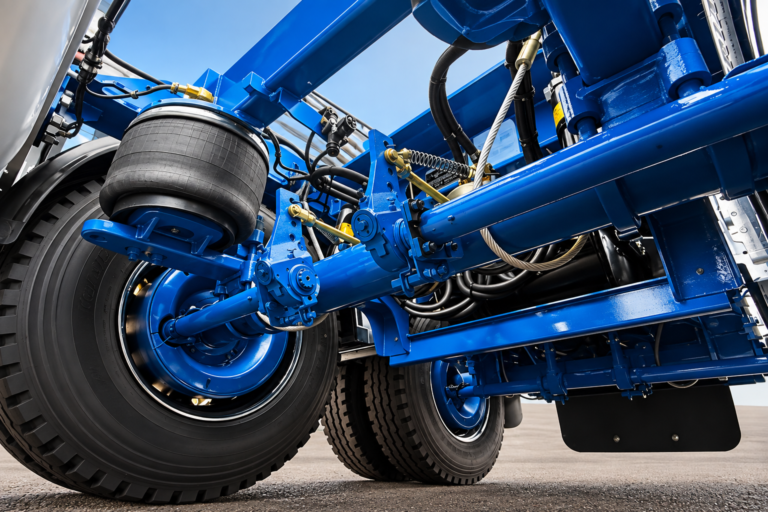

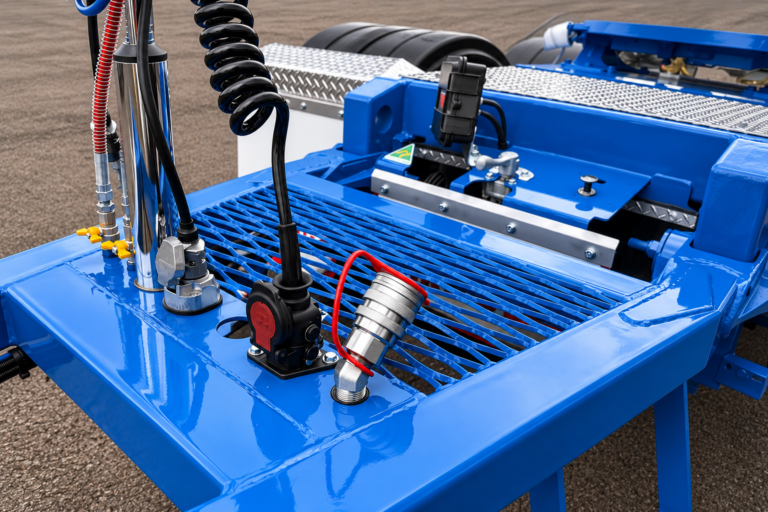

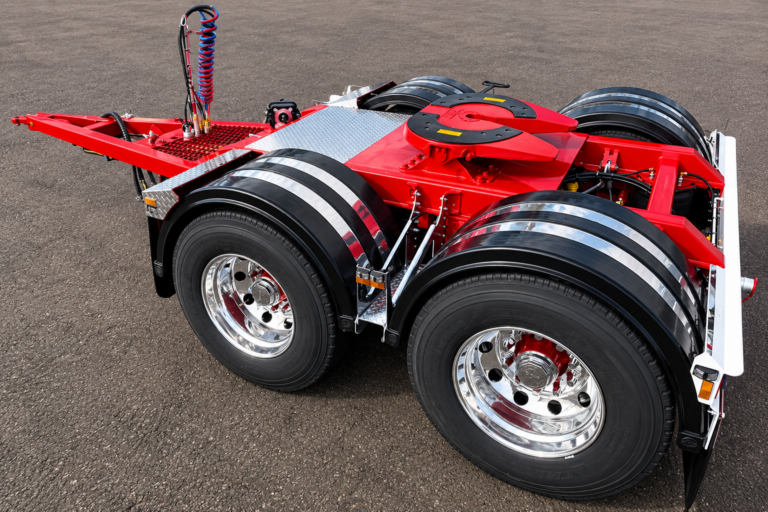

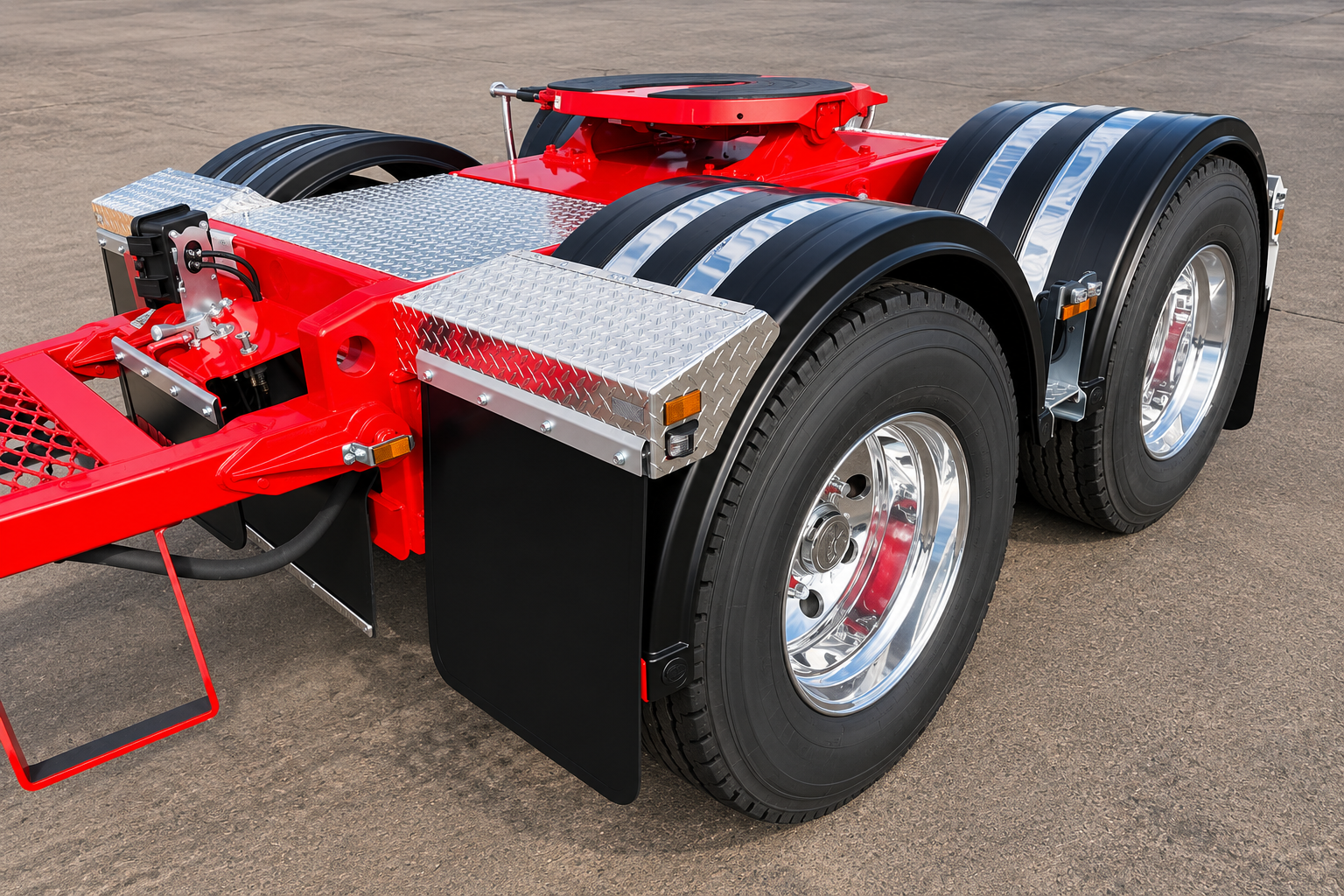

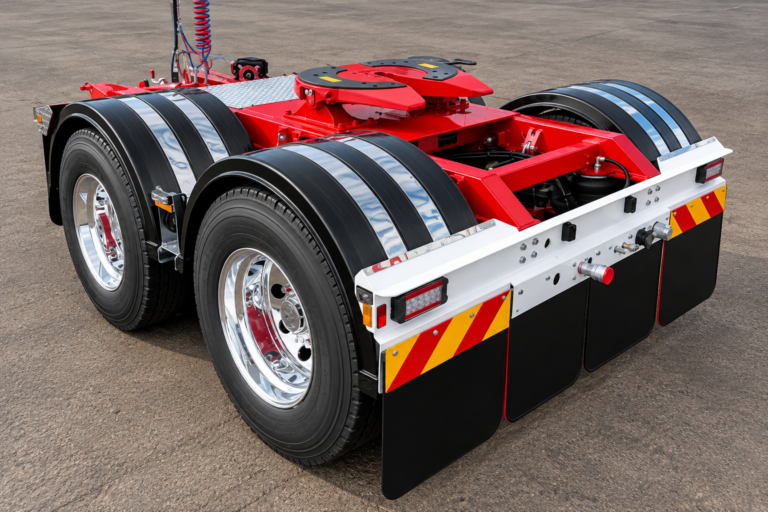

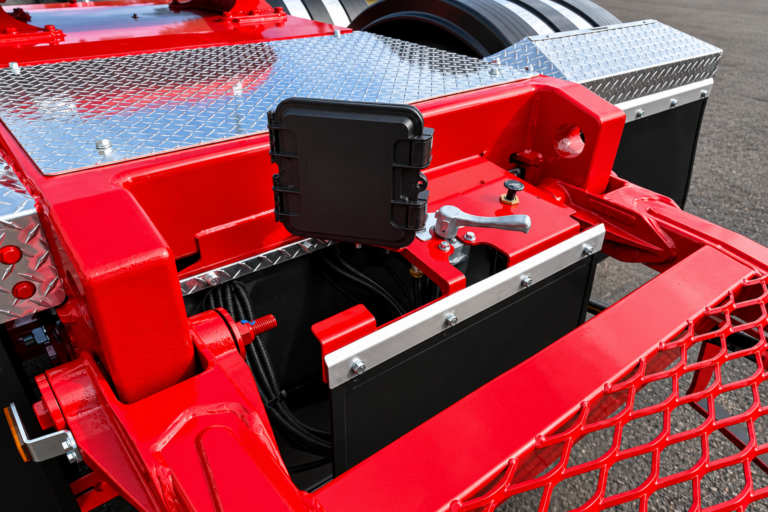

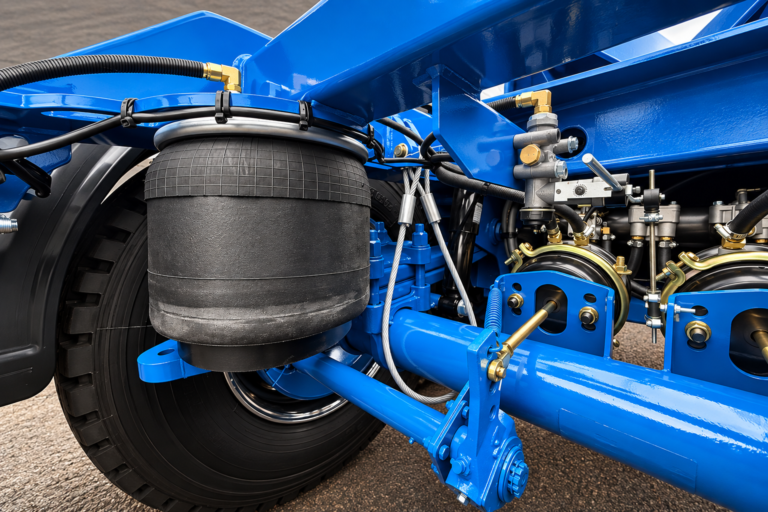

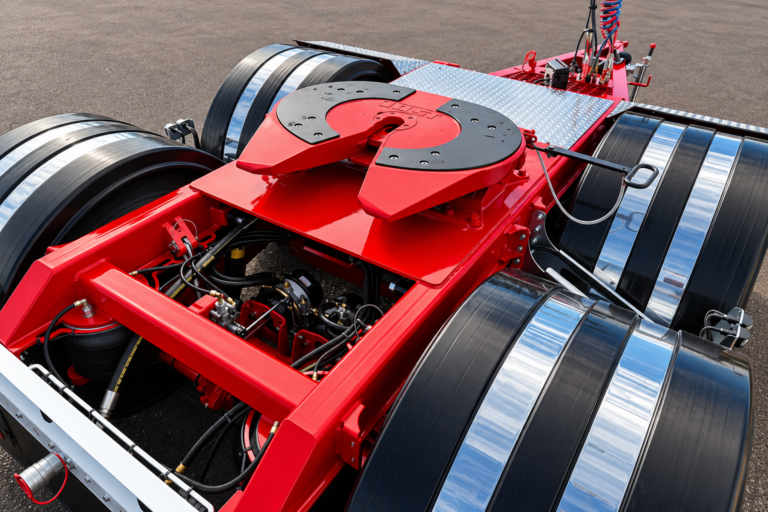

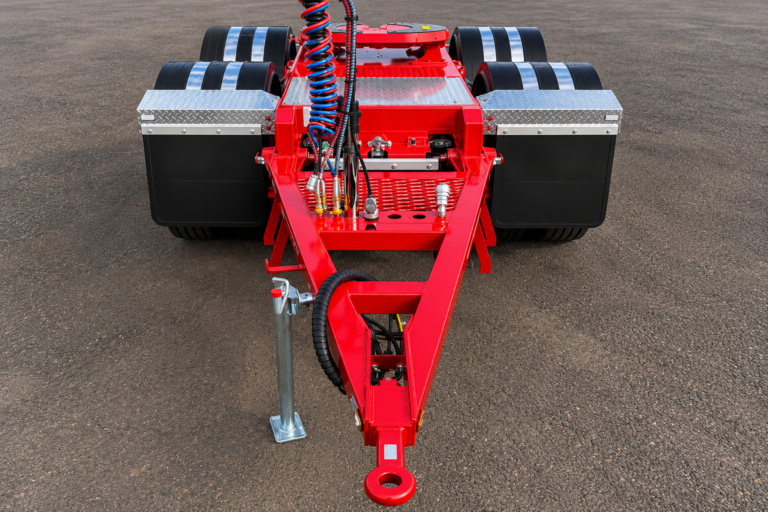

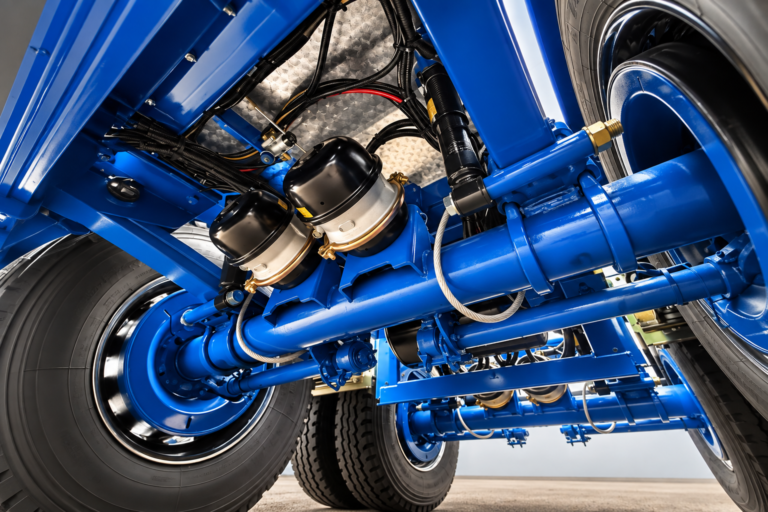

TANDEM AIRBAG

• Model: TQA-DOL-2
• IPA: 44927
• VTA: 044927
• Configuration: Tandem Axle
• Suspension: TQA Airbag Suspension
• Suspension Hangers: Straight Weld Hangers
• Axles: Drum Brake Axles
• Wheel PCD: 10-Stud, 285 PCD
• Tyres: 11R22.5 Triangle
• Wheels: Polished Alloy Rims

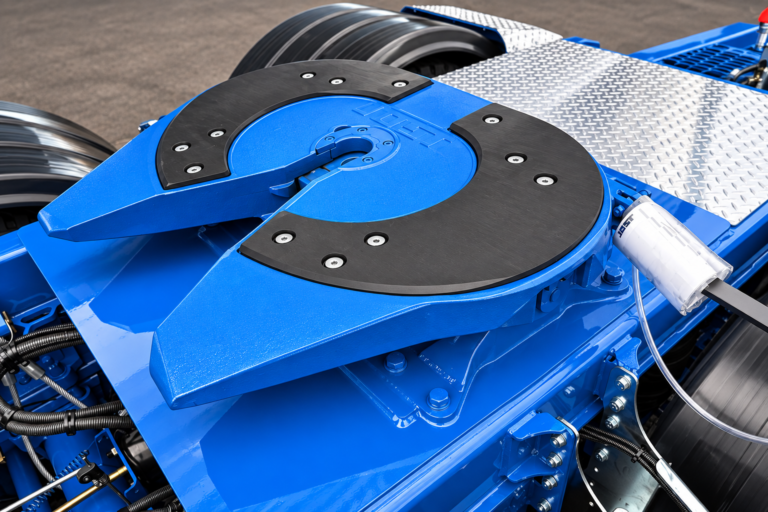

• Turntable: Jost Greaseless Turntable
• Towing Eye: Bolt-On Tow Eye
• Lighting: Multi-Volt LED Lights
• Guards: Black Plastic Guards
• Mud Flaps: Full Rear Dolly Mud Flaps
• Front Mud Flaps: Anti-Sail
• Yard Release: Yard Release System
• Landing Jack: Drop-Down Landing Jack
• Drawbar: Side Steps
• Levelling System: 2 Levelling Valves
• Weight Gauge: Included
• Raise/Lower Valve: Included
• Drawbar Position: Twin Position – Top / Bottom
• Pogo Stick & Suzi Coil: Included
• Wheel Alignment: Laser Wheel Alignment
• Slack Adjusters: Automatic Slack Adjusters

• Paint colour
• Pull length
• Polished/Chrome outer wheels



12 Month Australia-Wide Warranty

Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.

For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97

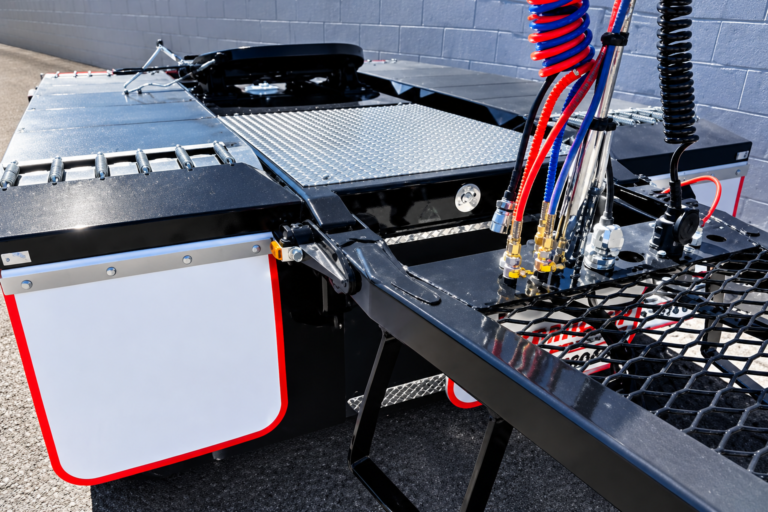

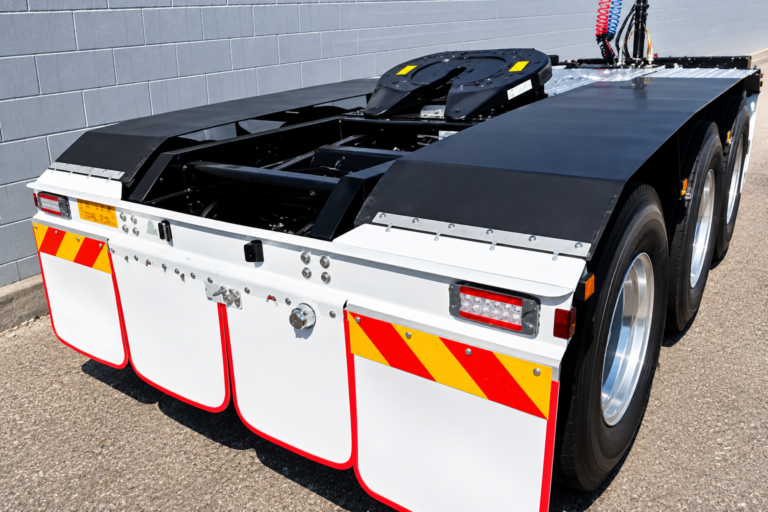

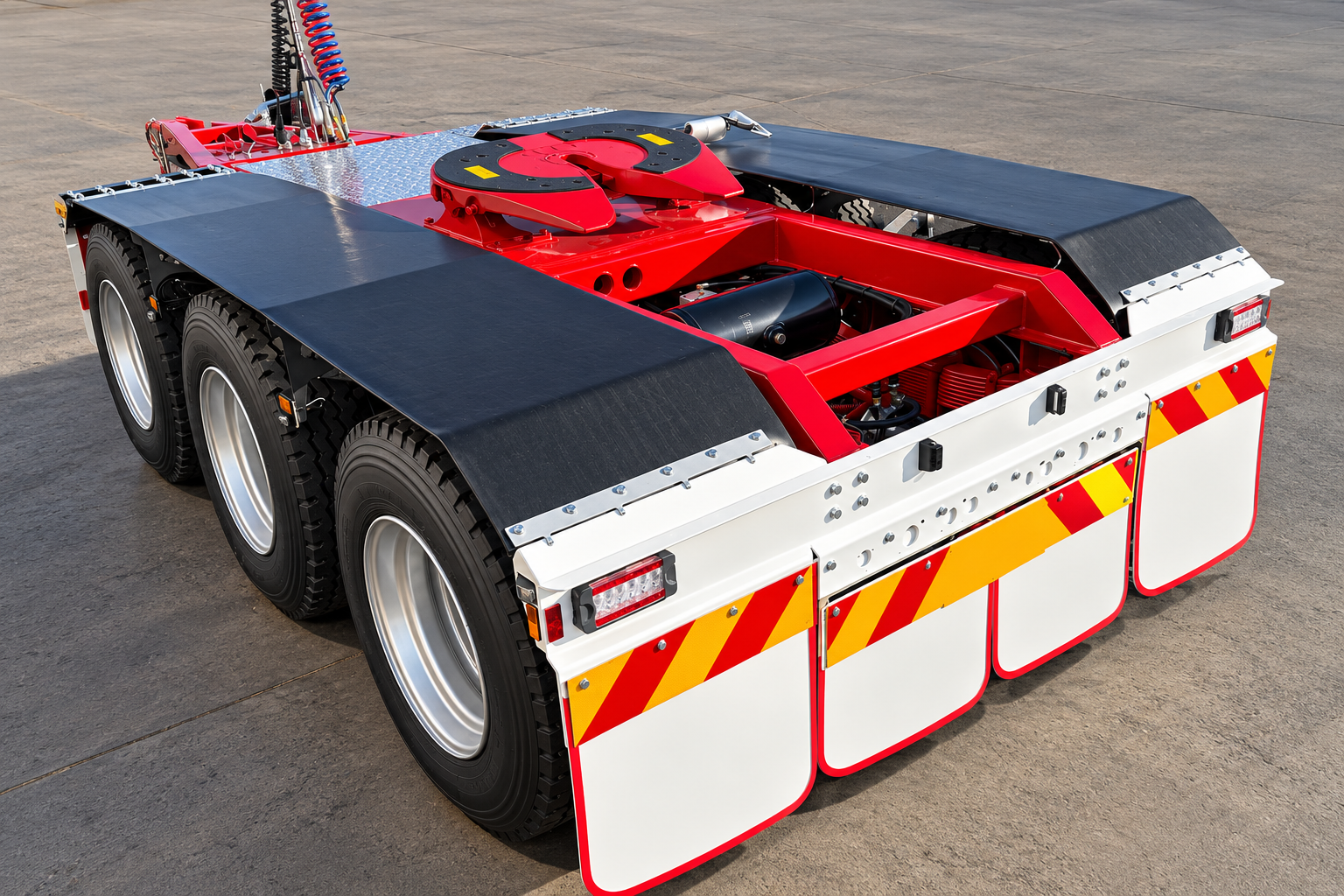

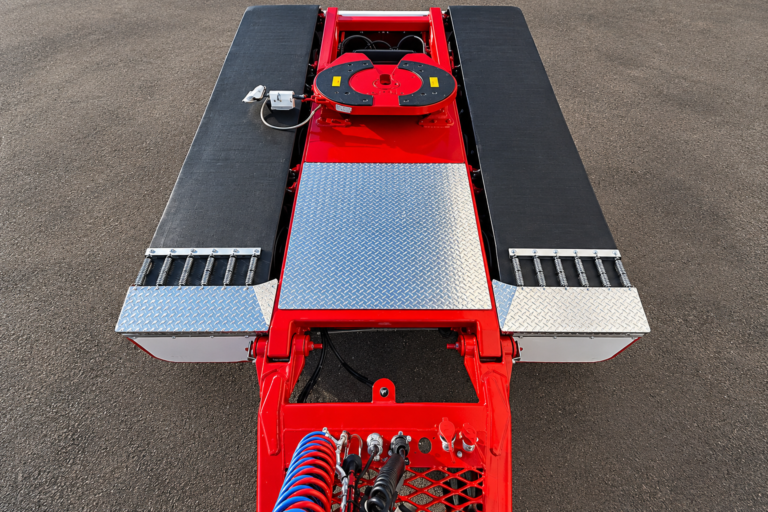

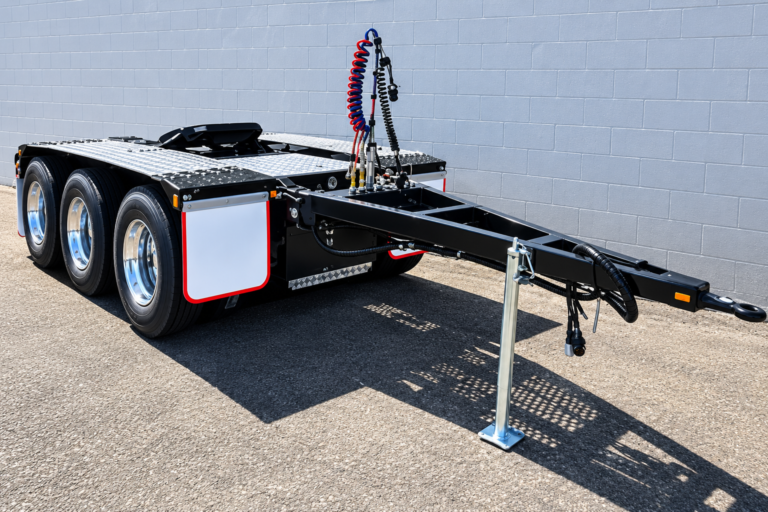

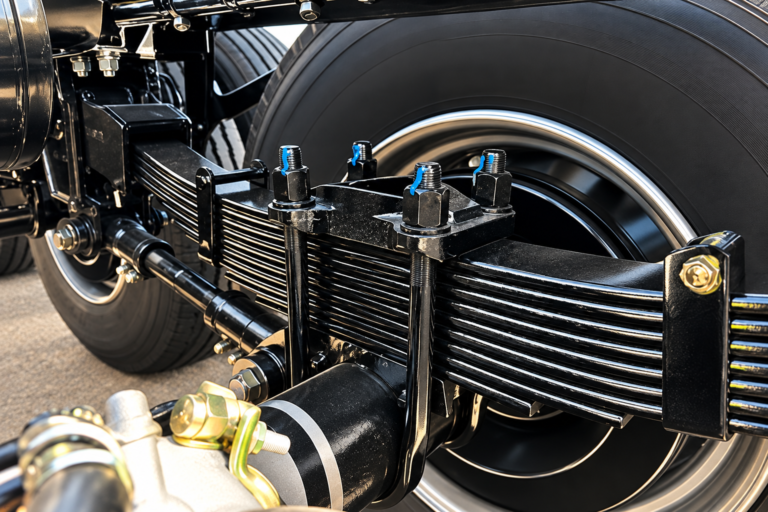

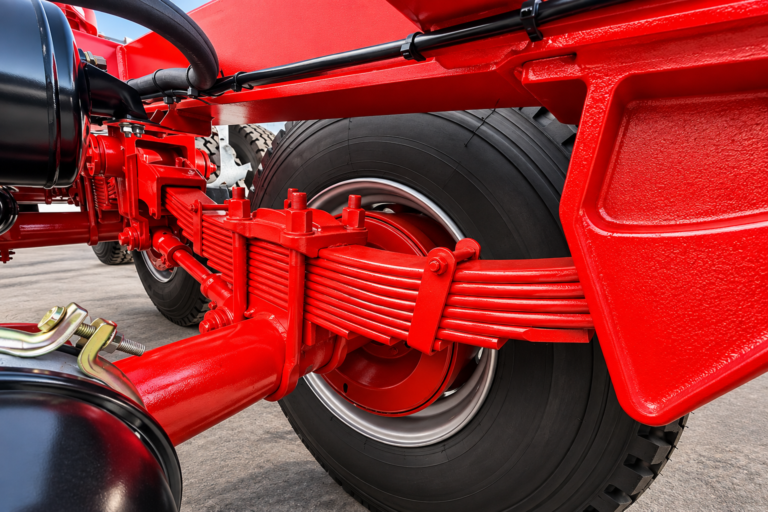

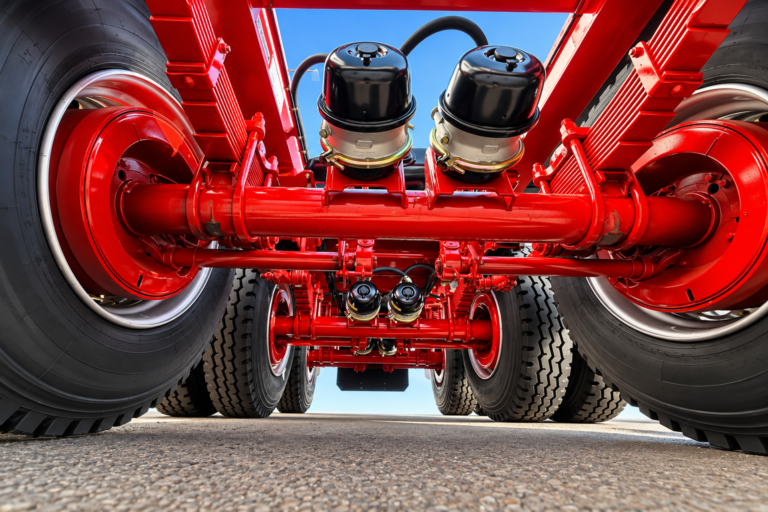

TRI-AXLE SPRING

• Type: Tri-Axle Converter Dolly
• Application: Suit Set of Viking Side Tippers
• ATM: 30 Tonne

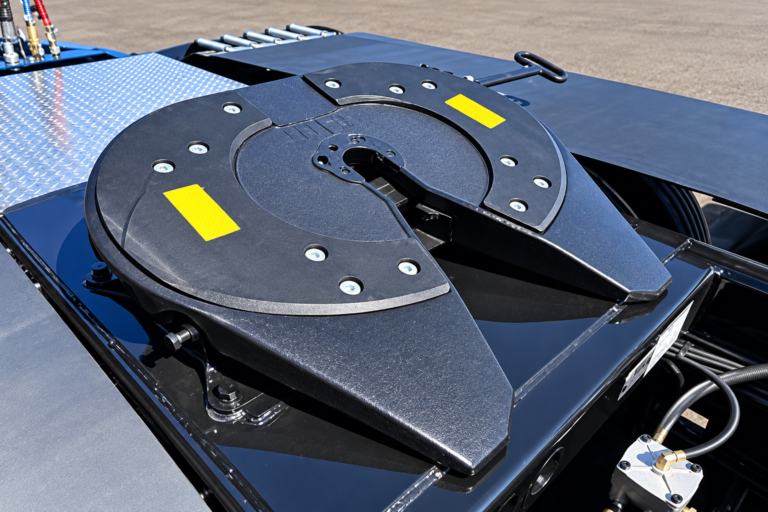

• Turntable: K-Hitch 50mm Turntable
• Suspension: K-Hitch Heavy Duty Spring Suspension
• Braking System: EBS
• Axles: Parallel Bearing Drum Brake Axles
• Wheel PCD: 10 × 285 PCD
• Wheels: 11R Steel Wheels
• Lighting: LED Lights
• Yard Release: Included
• Raise/Lower System: Included
• Height Control: Dual Height Control
• Turntable: Greaseless Turntable
• Towing Eye: Bolt-On Towing Eye
• Guards: Rubber Flexiguards
• Paint Colour: Red/Black
• Pull Length: Suit Set of Side Tippers
• Deck/Covering: Steel Checkerplate Covering on Top
• Front Hydraulic Line: Included
• Rear Hydraulic Line: Included
• Rear Air Hook-Up: Included
• Rear Electrical Hook-Up: Included
• Permit: Supplied to Transport

• Polished/Chrome outer wheels

12 Month Australia-Wide Warranty

Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.

For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97

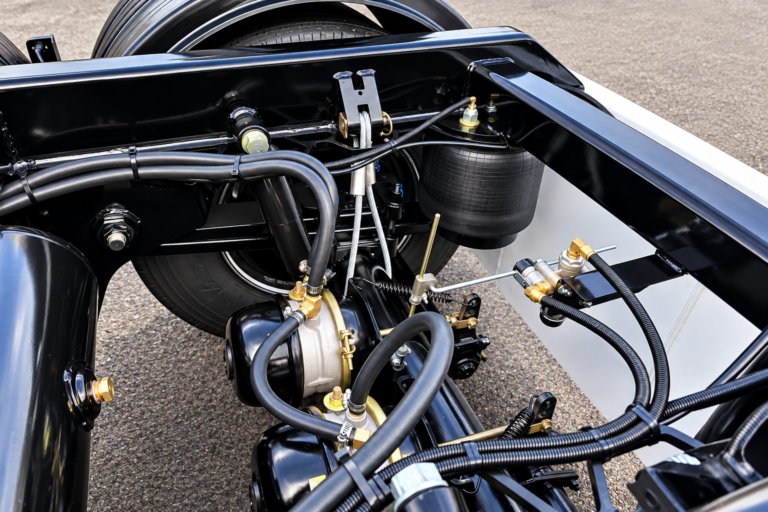

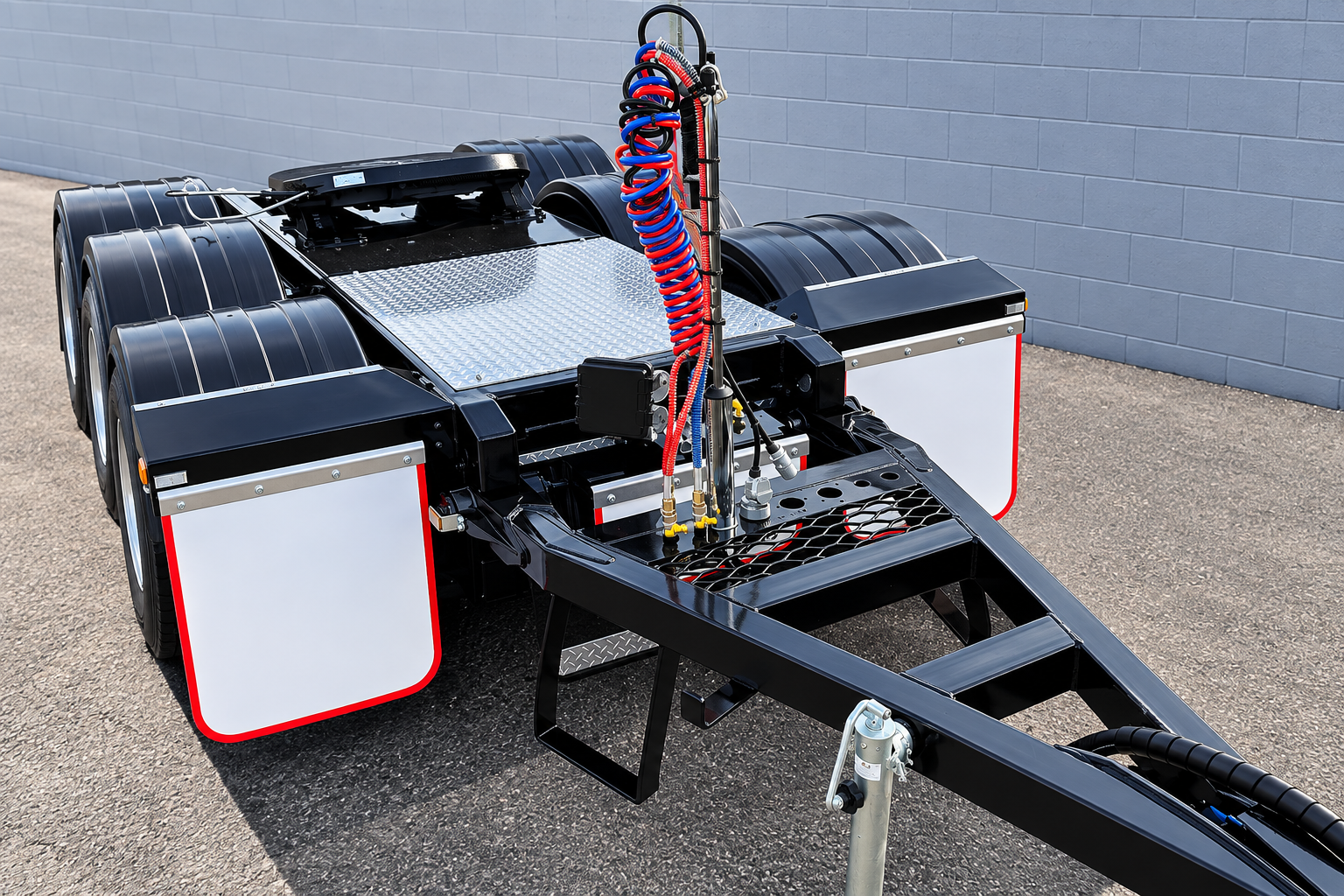

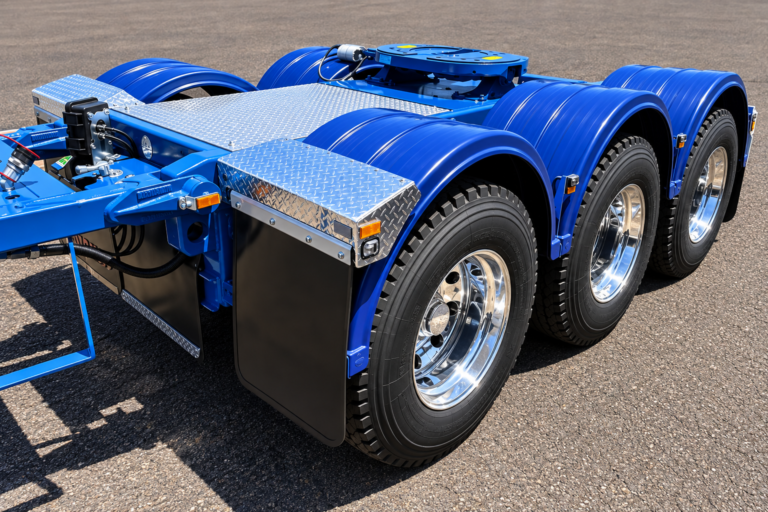

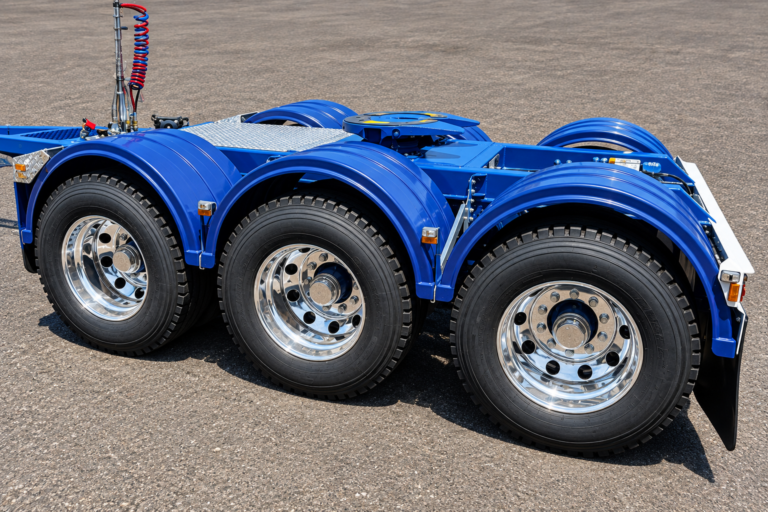

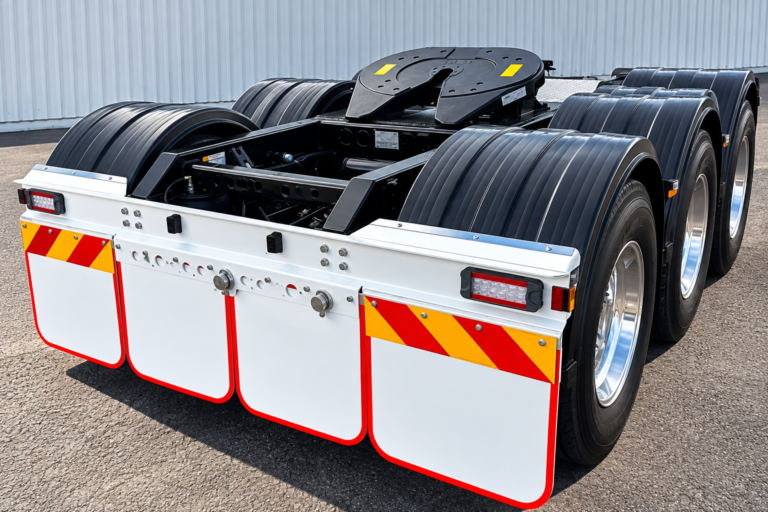

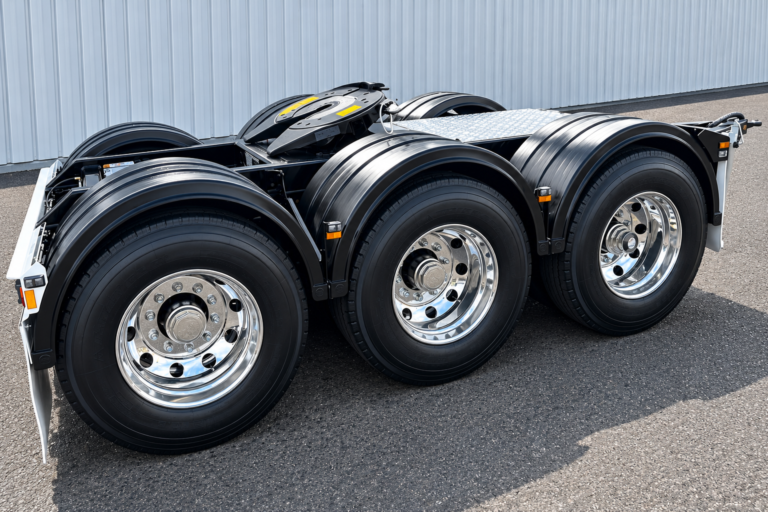

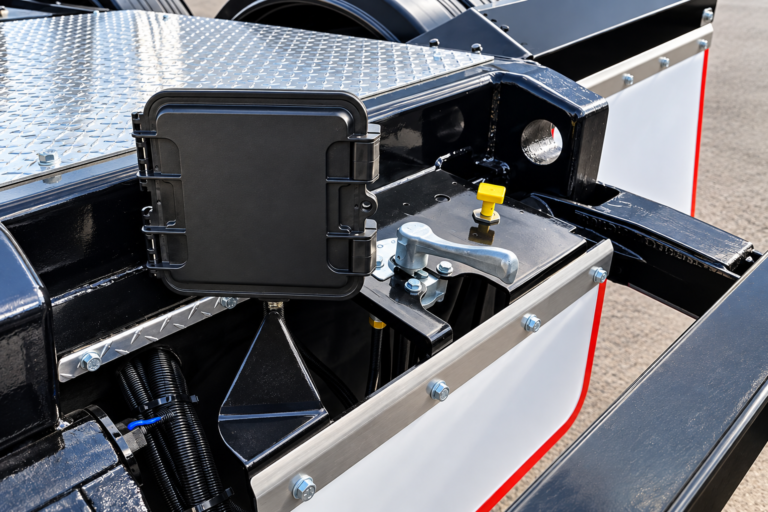

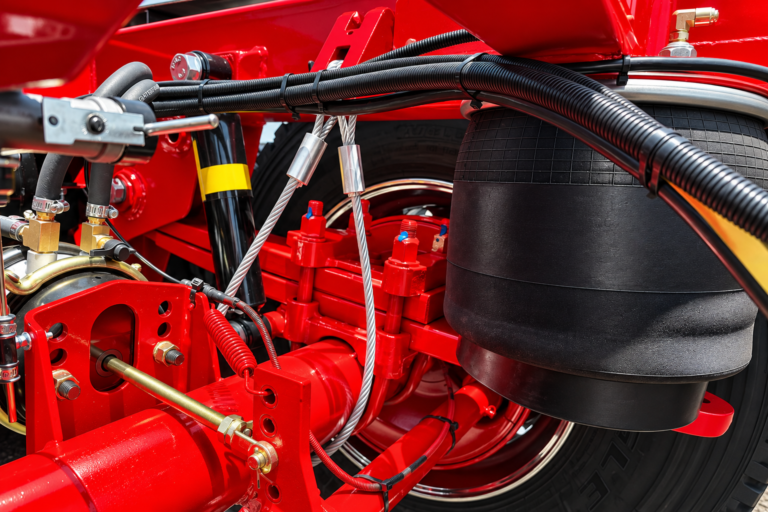

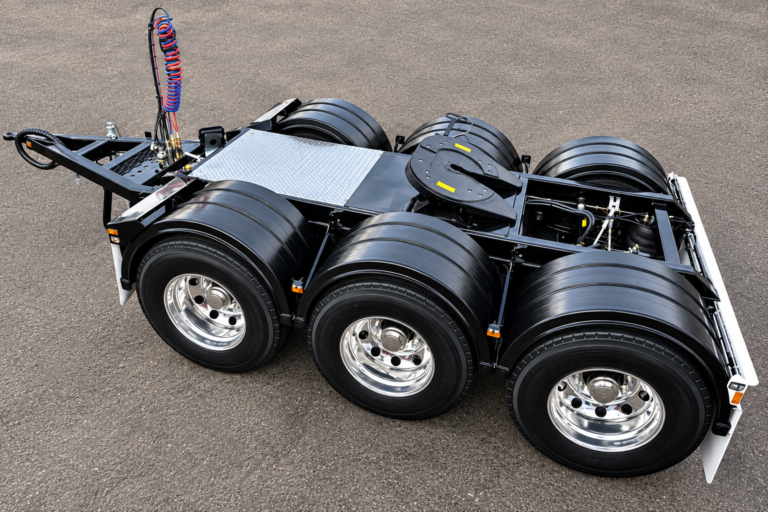

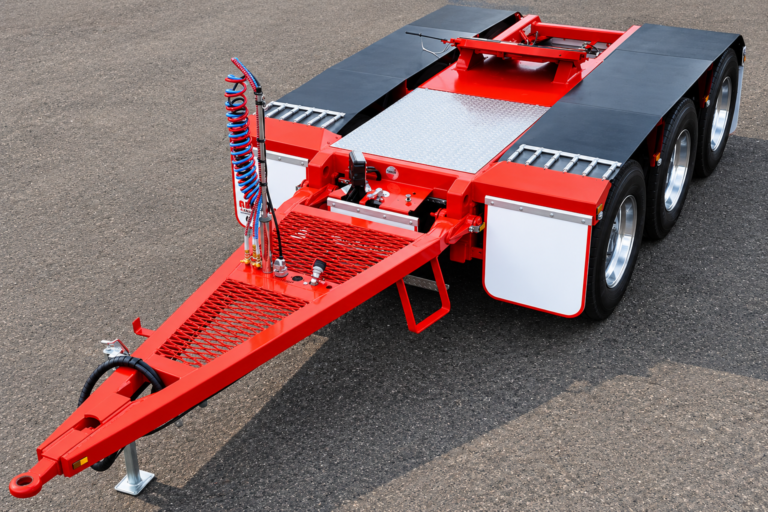

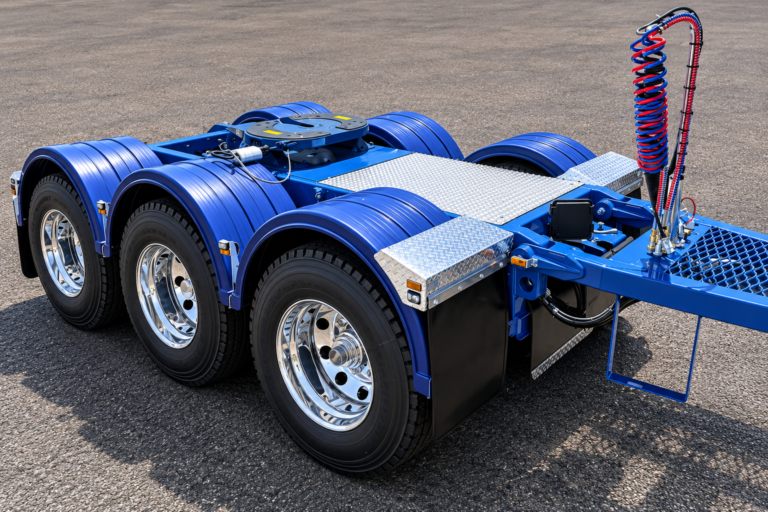

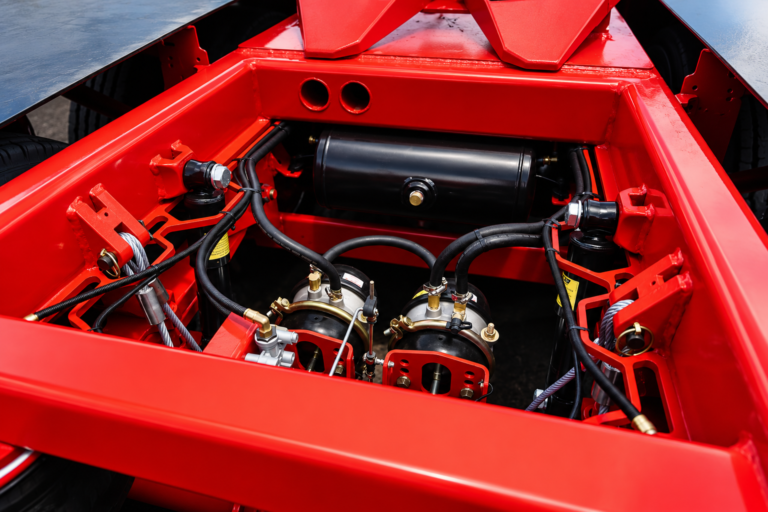

TRI-AXLE AIRBAG

• Type: Tri-Axle Converter Dolly
• Suspension: Parabolic Air Suspension
• Axles: Parallel Bearing Drum Brake Axles
• Disc Brakes: Optional Extra
• Wheel PCD: 10 × 285 PCD, 10 × 335 PCD or Spider
• Wheels: Alloy Wheels
• Yard Release: Included
• Raise/Lower System: Included
• Height Control: Dual Height Control
• Weight Gauge: Included

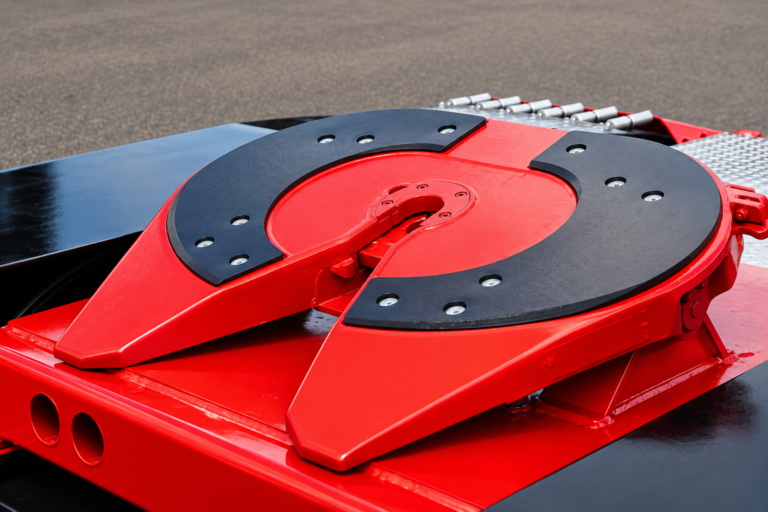

• Turntable: Greaseless Turntable
• Towing Eye: Bolt-On Towing Eye
• Mudguards: Plastic Mudguard or Flexiguard
• Paint Colour: Choice of Colour
• Pull Length: Choice of Pull Length
• Drawbar: Steel Mesh on Drawbar
• Propeller Plate: Polished Front Propeller Plate
• Pull Points: Twin Drawbar Pull Point

• Disc brake axles
• Choice of wheel PCD configuration
• Choice of mudguard configuration
• Paint colour
• Pull length
• Polished/Chrome outer wheels

12 Month Australia-Wide Warranty

Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.

For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97

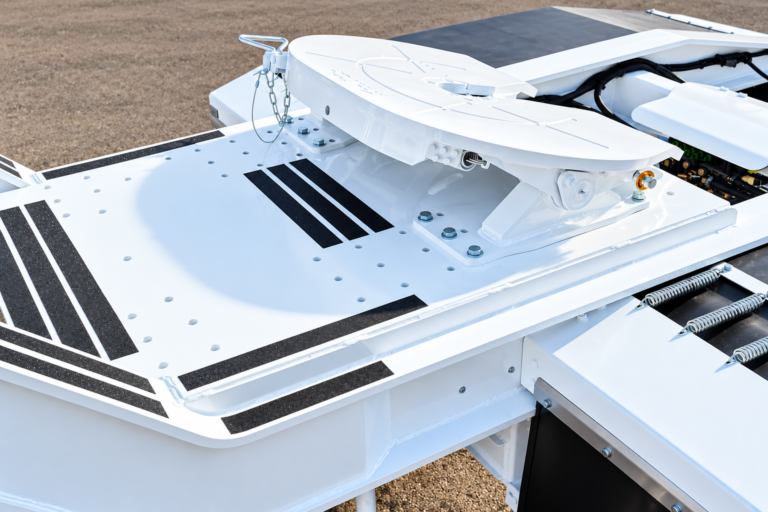

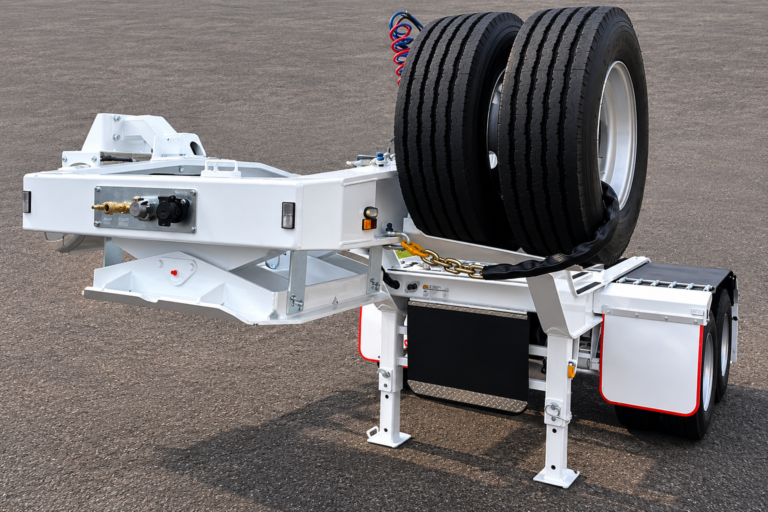

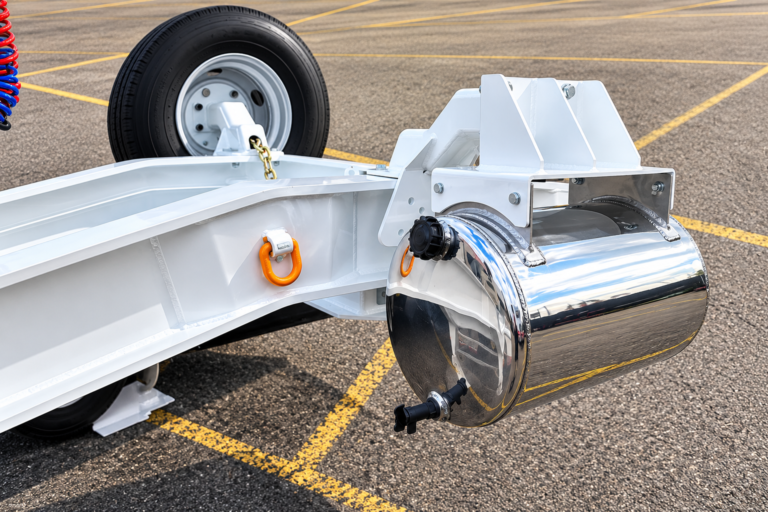

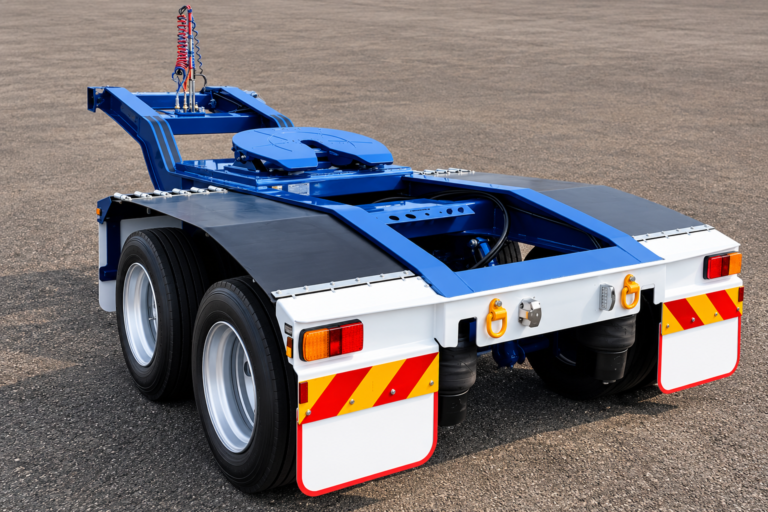

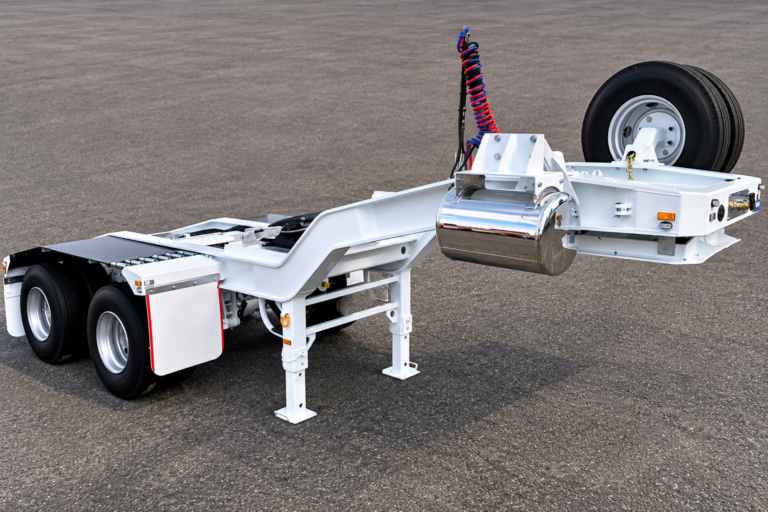

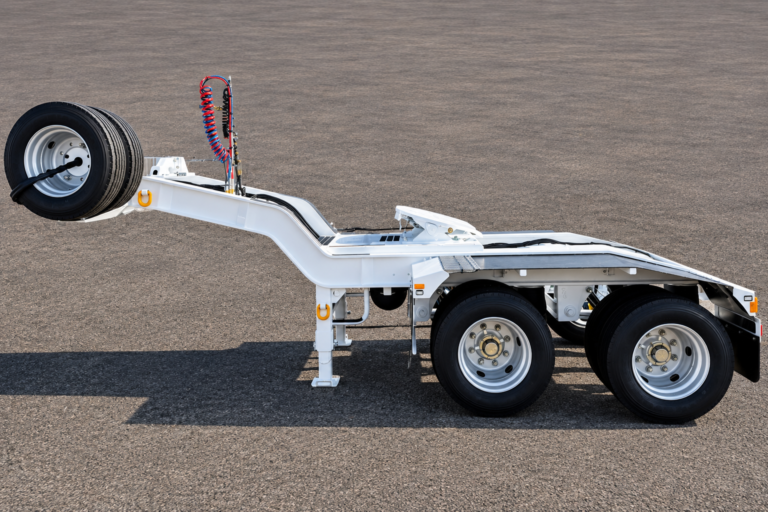

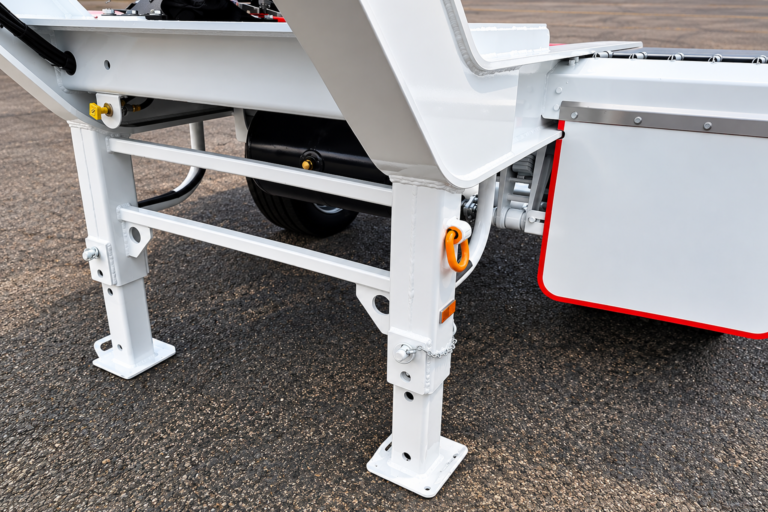

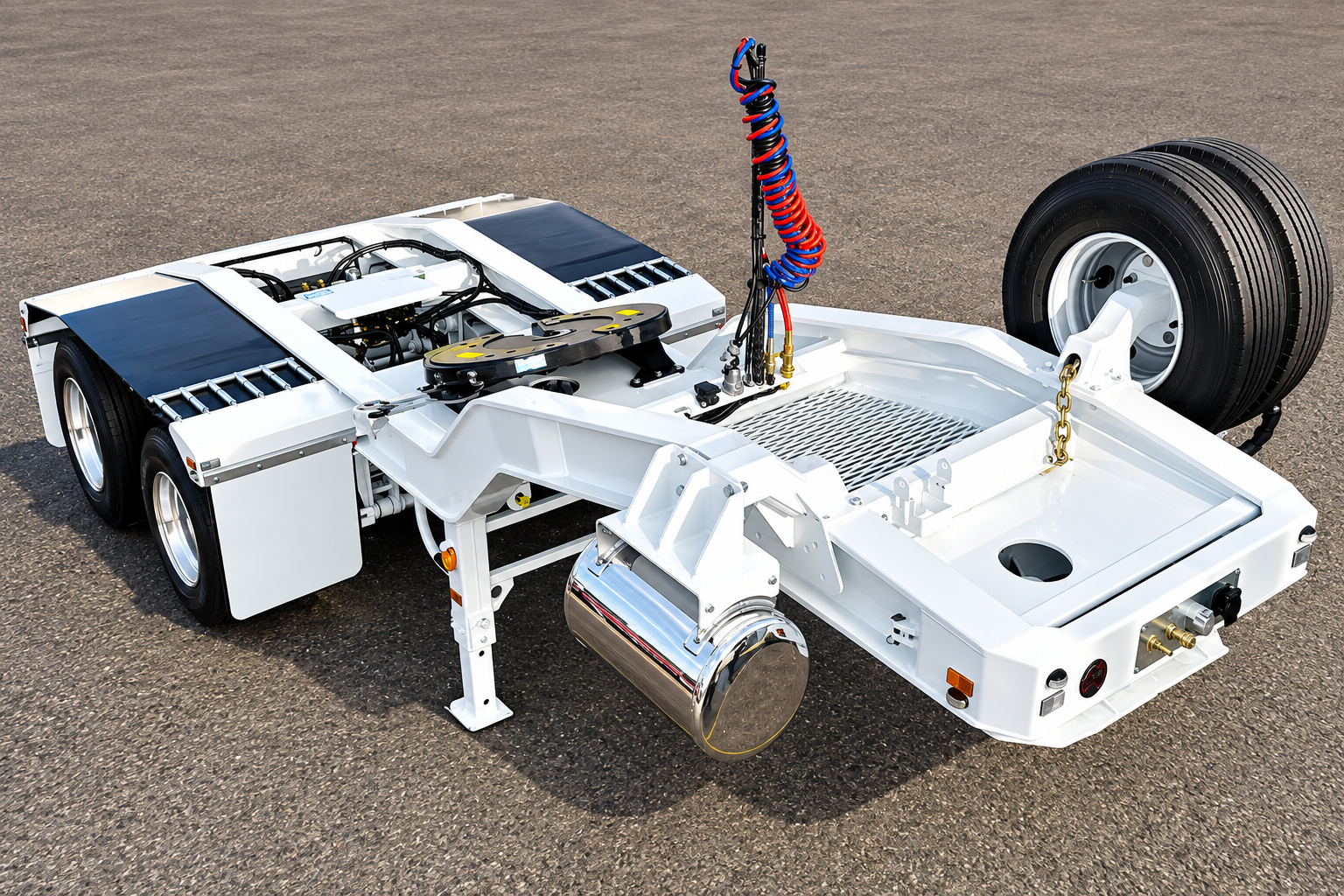

LOW LOADER

• Type: Low Loader Dolly
• Application: Matching Dolly for Viking Quad Float
• Manufacture: Australian Made
• Model: TQA-DOL-LL-2
• VTA: VTA-061039
• Configuration: 2 Rows of 4
• ATM: 36 Tonne
• GTM: 16 Tonne
• Suspension: Tandem Airbag Suspension
• Axles: 19.5″ Drum Brake, 8 Stud
• Tyres: 19.5″ Triangle – 10 Units
• Wheels: 19.5″ 8-Stud Steel Rims – Silver
• Spare Wheel Carrier: Vertical – 2 Wheels
• Braking System: Haldex EBS Air Brakes
• Skidplate: Single Oscillating Skidplate
• King Pin: Drop-In 50mm or 90mm
• Turntable: 50mm or 90mm Grease-Type Turntable
• Landing Legs: Heavy-Duty Drop-Pin Landing Legs
• Mudguards: Flexi Rubber Mudguards
• Lighting: Multi-Volt LED Lights
• Yard Release: Yard Release Valve
• Water Tank: Polished Alloy Water Tank
• Lashing Points: Multiple
• Paint Colour: Optional

• Paint colour
• 50mm or 90mm king pin configuration
• 50mm or 90mm turntable configuration (Grease or Greaseless)
• Polished/Chrome outer wheels

12 Month Australia-Wide Warranty

Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.

For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97

CUSTOM WIDENING

• Type: Widening Low Loader Dolly
• Application: Matching Dolly for Viking 100-Tonne Widening Float
• Manufacture: Australian Made
• Configuration: 2 Rows of 8
• Widening System: Hydraulic
• Width: Widens from 2,500mm to Approx. 4,200mm
• Tare Weight: Approx. 5,780kg
• Construction: High-Tensile Steel
• Paint Colour: Customer Fleet Colour
• Skid Plate: Oscillating Skid Plate
• King Pins: Double Drop-In King Pins
• King Pin Positions: Multiple Positions
• Turntable: Sliding Turntable for Load Sharing and Trailer Setup
• Suspension: Heavy-Duty Equalising Walking Beam Suspension
• Axles: Swivel Axles
• Running Gear: TQA 17.5″ 10-Stud Drum Brake Axles
• Braking System: Heavy-Duty Drum Brakes
• Hydraulic Power Pack: Integrated for Widening Operation
• Stabilising Leg: Included for Widening and Prime Mover Disconnect
• Lifting Points: Included
• Water Tank: Included
• Spare Wheel Carriers: Included
• Safety Signage: Included

• Paint colour
• 50mm or 90mm king pin configuration
• 50mm or 90mm turntable configuration (Grease or Greaseless)
• Polished/Chrome outer wheels

12 Month Australia-Wide Warranty

Every Viking trailer is backed by a 12-month Australia-wide warranty, giving you confidence and support wherever you’re operating.

For warranty assistance, technical support or replacement parts, contact the Viking Trailers & Equipment team on 1300 90 90 97

Quality trailers and equipment at competitive prices, backed by good, honest and reliable service. Supplying customers Australia-wide.
